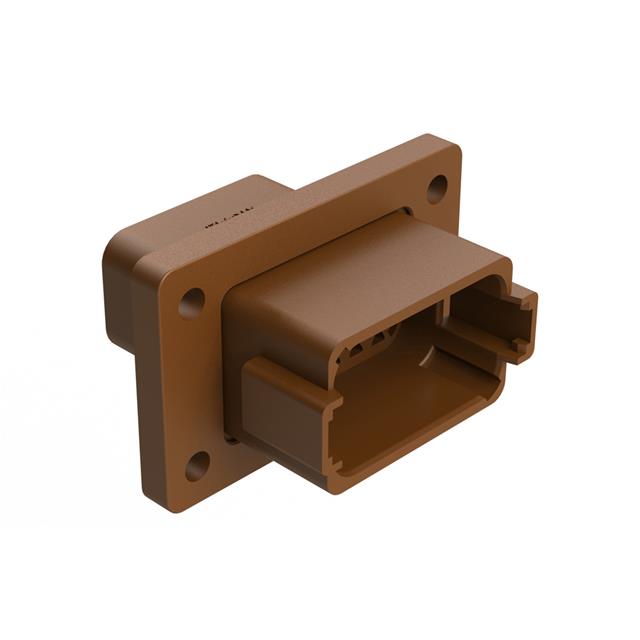

AT04-12PD-CL03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family

AT04-12PD-CL03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS FLANGE MNT

Deep-Dive with AI

DocumentsDatasheet A Series Family

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PD-CL03

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-12PD Series

Part	Contact Type	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Number of Positions	Connector Type	Style	Number of Rows	Insulation Material	Ingress Protection	Insulation Color	Contact Shape	Contact Material	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Finish - Mating	Note	Features	Contact Termination	Color
Amphenol Sine Systems Corp AT04-12PD-BM03	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Nickel
Amphenol Sine Systems Corp AT04-12PD-PM12	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-BM01	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Gold
Amphenol Sine Systems Corp AT04-12PD-MM01	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included		Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-L012	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-CL03	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Mounting Flange Sealed	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included		Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-BM02	Male Pin	Automotive General Purpose Industrial	Through Hole	-55 °C	125 °C	13 A	Solder	12	Receptacle	Board to Cable/Wire	2	Thermoplastic	IP67	Brown	Circular	Copper Alloy	Latch Holder	0.835 "	21.21 mm	All	Shrouded - 4 Wall	Gold
Amphenol Sine Systems Corp AT04-12PD-SRBR	Male Pin		Free Hanging (In-Line)	-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Cap (Cover) Sealed Strain Relief	Crimp	Brown
Amphenol Sine Systems Corp AT04-12PD-LE07	Male Pin			-55 °C	125 °C			12	Receptacle		2	Thermoplastic					Latch Holder						Contacts Not Included	Cap (Cover) Mounting Flange Sealed	Crimp	Brown

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 3.94
		25	$ 3.73
		50	$ 3.64
		100	$ 3.45
		300	$ 3.20

Description

General part information

AT04-12PD Series

12 Rectangular Connectors - Housings Receptacle Brown

Documents

Technical documentation and resources

Datasheet

A Series Family
