1375799-4

Active

TE Connectivity AMP Connectors

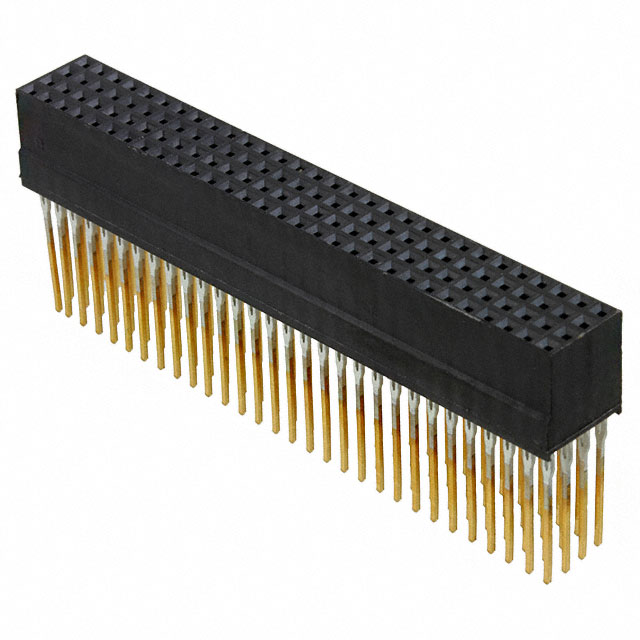

CONN STKTHRU PC/104+ 120POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN STKTHRU PC/104+ 120POS PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Connector Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104 Plus

Technical documentation and resources

Specification	1375799-4	1375799 Series

Color	Black	Black
Connector Style	PC/104 Plus	PC/104 Plus
Connector Type	-	Stackthrough, Keyed (PC/104)
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	120	120
Number of Positions Loaded	All	All
Number of Positions Loaded	-	119
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Termination	Press-Fit	Press-Fit, Press-Fit, Long Post

Part	Termination	Material Flammability Rating	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Style	Number of Positions	Contact Finish	Number of Positions Loaded	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions Loaded [custom]
TE Connectivity AMP Connectors 1375799-4	Press-Fit	UL94 V-0	0.079 in	2 mm	105 ░C	-55 °C	Black	PC/104 Plus	120	Gold	All	Through Hole	15 µin	0.38 µm
TE Connectivity AMP Connectors 1375799-2	Press-Fit, Long Post	UL94 V-0	0.079 in	2 mm	105 ░C	-55 °C	Black	PC/104 Plus	120	Gold		Through Hole	15 µin	0.38 µm	Stackthrough, Keyed (PC/104)	119
