RL-1256-3-220

Active

Renco Electronics, Inc.

FIXED IND 220UH 5.5A 80MOHM TH

Search across all available documentation for this part.

Active

Renco Electronics, Inc.

FIXED IND 220UH 5.5A 80MOHM TH

Technical Specifications

Parameters and characteristics for this part

FIXED IND 220UH 5.5A 80MOHM TH

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Type	Inductance	Shielding	Current - Saturation (Isat)	Package / Case	Inductance Frequency - Test	Supplier Device Package	Tolerance	DC Resistance (DCR) [Max]
Renco Electronics, Inc. RL-1256-3-220	1.1 in	27.94 mm	Through Hole	0.85 in	21.59 mm	-40 °C	130 °C	5.5 Amps	Wirewound	220 µH	Unshielded	8.7 A	Radial, Vertical Cylinder	10 kHz	Radial	10 %	80 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

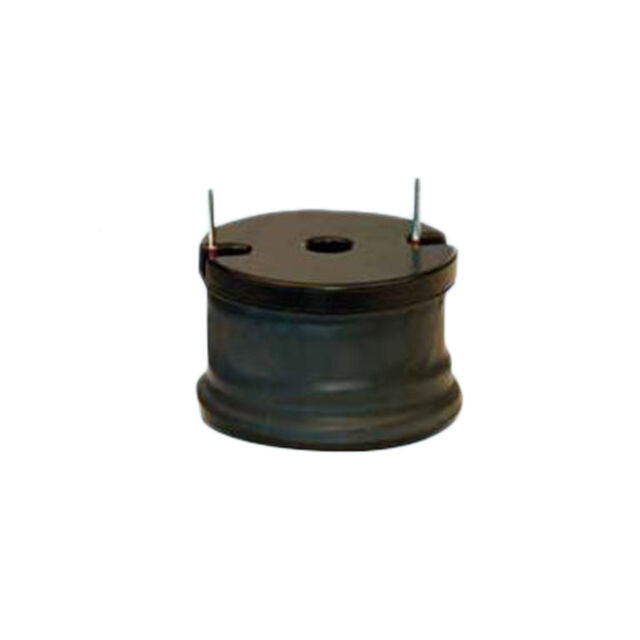

220 µH Unshielded Wirewound Inductor 5.5 A 80mOhm Max Radial, Vertical Cylinder
