325201-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325201-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325201-11-0 | 325201 Series |
|---|---|---|
| - | - | |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | Closed | Closed |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 11 | 7 - 25 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 11 | 7 - 25 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.36 | |
| 10 | $ 4.65 | |||
| 30 | $ 4.25 | |||
325201 Series
CONN BARRIER STRP 23CIRC 0.325"
| Part | Number of Rows | Current Rating (Amps) | Material - Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Voltage Rating | Material Flammability Rating | Operating Temperature | Number of Wire Entries [custom] | Barrier Type | Bottom Termination | Pitch [x] | Pitch [x] | Top Termination | Terminal Block Type | Mounting Type | Features | Number of Circuits | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325201-23-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 23 | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 23 | |
Curtis Industries 325201-25-0 | |||||||||||||||||||
Curtis Industries 325201-10-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 10 | 10 | |
Curtis Industries 325201-11-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 11 | 11 | |
Curtis Industries 325201-24-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 24 | ||
Curtis Industries 325201-16-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 16 | 16 | |
Curtis Industries 325201-07-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 7 | 7 | |
Curtis Industries 325201-20-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 20 | 20 | |
Curtis Industries 325201-17-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 17 | 17 | |
Curtis Industries 325201-25-0 | 1 | 15 A | Polypropylene (PP) | 14 AWG | 22 AWG | 300 VDC | UL94 V-0 | 105 C | 3 Wall (Tri) | Closed | 8.26 mm | 0.325 in | Screws | Barrier Block | Chassis, Panel | Flange | 25 | 25 |
Description
General part information
325201 Series

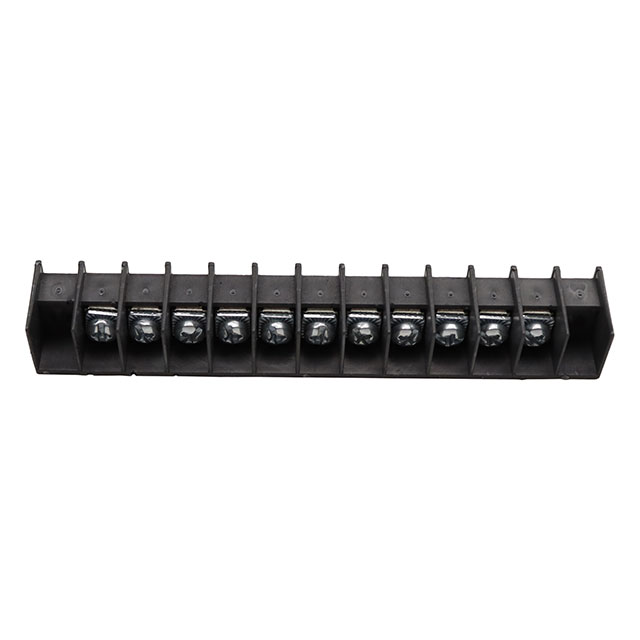

11 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
