9343 0101000

Active

Belden Inc.

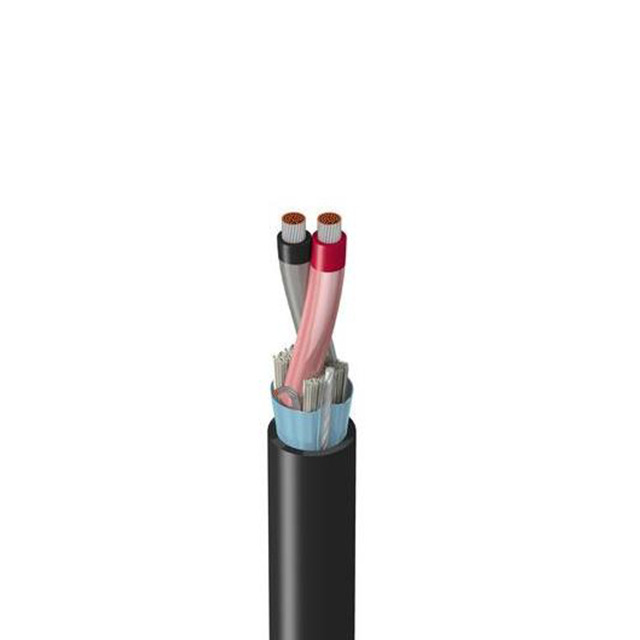

CABLE 2COND 14AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9343 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	42
Conductor Strand [custom]	30
Features	Direct Burial, Ripcord, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.358 in
Jacket (Insulation) Diameter [diameter]	9.09 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	TC, THHN, THWN, UL Style NPLF
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	13.5 AWG

Part	Length	Length	Ratings	Number of Conductors	Wire Gauge	Shield Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Usage	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Shield Coverage	Shield Type
Belden Inc. 9343 0101000	1000 ft	304.8 m	TC THHN THWN UL Style NPLF	2	13.5 AWG	Aluminum	Direct Burial Drain Wire Ripcord UV Resistant	42	30	0.048 in	1.219 mm	Black	0.358 in	9.09 mm	Multi-Conductor	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Copper Tinned	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	100 %	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.63

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 14 AWG Foil 1000.0' (304.8m)
