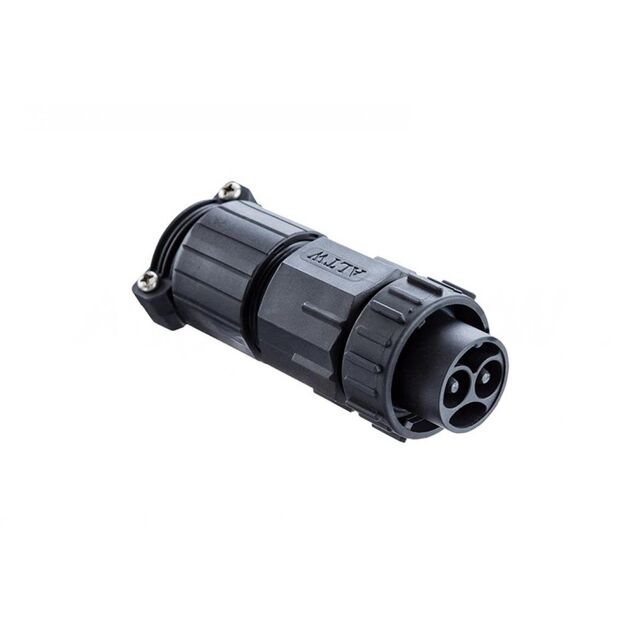

PWMU-06BFMB-TL7001
ActiveAmphenol LTW
POWER, PWMU, PLASTIC, 50A+2A, 06 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 3 POINTS LOCK, SCREW-IN, FIELD INSTALLABLE, 14.
Deep-Dive with AI
Search across all available documentation for this part.
PWMU-06BFMB-TL7001
ActiveAmphenol LTW
POWER, PWMU, PLASTIC, 50A+2A, 06 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 3 POINTS LOCK, SCREW-IN, FIELD INSTALLABLE, 14.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PWMU-06BFMB-TL7001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [custom] | 0.748 in |
| Cable Opening [Max] [custom] | 19 mm |
| Cable Opening [Min] [custom] | 0.571 in |
| Cable Opening [Min] [custom] | 14.5 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 50 A, 2 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PWMU-06BFMB Series
6 Position Circular Connector Plug, Male Pins Screw
