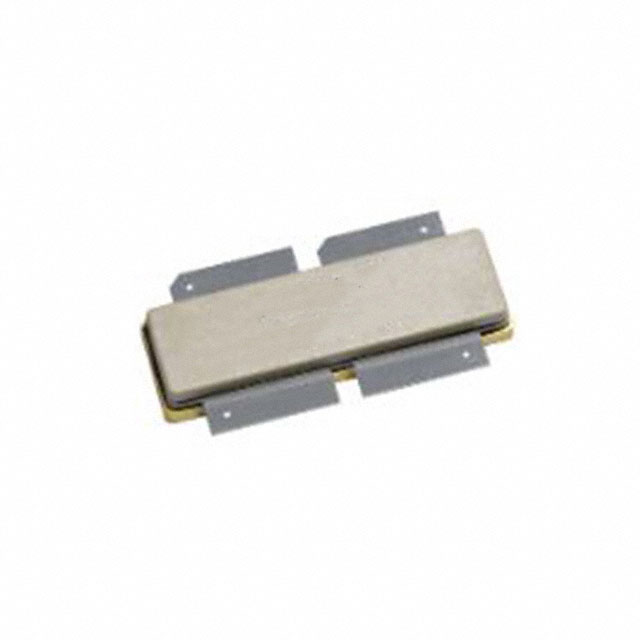

BLC2425M8LS300PY

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1250-1

Search across all available documentation for this part.

Ampleon USA Inc.

RF MOSFET LDMOS 32V SOT1250-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 109.25

General part information

RF Mosfet 32 V 20 mA 2.45GHz 17.5dB 300W SOT1250-1

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BLC2425M8LS300PY	BLC2425 Series

Configuration	Common Source, Dual	Common Source, Dual, 2 N-Channel (Dual) Common Source, N-Channel
Current - Test	20 mA	20 - 100 mA
Current Rating (Amps)	-	2.8 - 4.2 µA
Frequency	2.45 GHz	2.45 GHz
Frequency	-	2.5 GHz
Frequency	-	2.4 GHz
Gain	17.5 dBi	14.4 - 18.5 dBi
Mounting Type	Surface Mount	Surface Mount
Package / Case	SOT1250-1	SOT1250-1, SOT-1270-1
Power - Output	300 W	250 - 500 W
Supplier Device Package	SOT1250-1	SOT1250-1, SOT-1270-1
Voltage - Rated	65 V	65 V
Voltage - Test	32 V	32 V

RF MOSFET LDMOS 32V SOT1250-1

Part	Frequency	Voltage - Rated	Current - Test	Power - Output	Supplier Device Package	Voltage - Test	Mounting Type	Package / Case	Configuration	Gain	Frequency [Max]	Frequency [Min]	Current Rating (Amps)
Ampleon USA Inc. BLC2425M8LS300PZ	2.45 GHz	65 V	20 mA	300 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	Common Source, Dual	17.5 dBi
Ampleon USA Inc. BLC2425M10LS500PY		65 V	20 mA	500 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	2 N-Channel (Dual) Common Source	14.5 dBi	2.5 GHz	2.4 GHz	4.2 µA
Ampleon USA Inc. BLC2425M9LS250Z	2.45 GHz	65 V	20 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1		18.5 dBi
Ampleon USA Inc. BLC2425M10LS250Y		65 V	100 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1	N-Channel	14.4 dBd	2.5 GHz	2.4 GHz	2.8 µA
Ampleon USA Inc. BLC2425M10LS250Z		65 V	100 mA	250 W	SOT-1270-1	32 V	Surface Mount	SOT-1270-1		14.4 dBd	2.5 GHz	2.4 GHz	2.8 µA
Ampleon USA Inc. BLC2425M8LS300PY	2.45 GHz	65 V	20 mA	300 W	SOT1250-1	32 V	Surface Mount	SOT1250-1	Common Source, Dual	17.5 dBi
