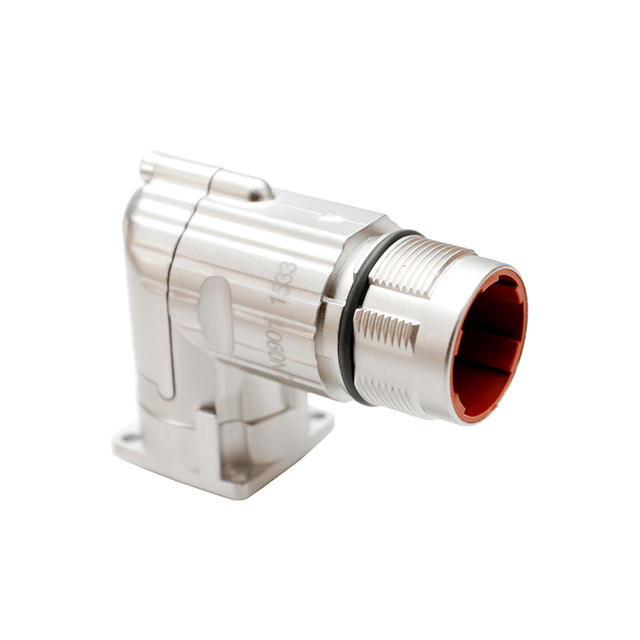

MB1RJN0601

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 6PS PNL MT RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB1RJN0601

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 6PS PNL MT RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB1RJN0601

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-6
Shielding	Shielded
Type	For Male Pins

MB1RJN Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shielding	Contact Shape	Mounting Type	Type	Contact Size	Shell Material	Orientation	Material Flammability Rating	Housing Color	Mounting Feature	Ingress Protection	Contact Type	Shell Size - Insert	Note	Shell Finish	Connector Type	Number of Positions	Features	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB1RJN0600	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	Shielded	Circular	Panel Mount Right Angle	For Male Pins	2 mm	Zinc Die Cast	Keyed	UL94 V-0	Silver	Flange	IP67 - Dust Tight Waterproof	Crimp	M23-6	Contacts Not Included	Nickel	Receptacle Housing	6
Amphenol Sine Systems Corp MB1RJNNG36	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	Shielded	Circular		For Male Pins	1 mm 2 mm	Zinc Die Cast	Keyed	UL94 V-0	Silver	Flange	IP67 - Dust Tight Waterproof	Crimp	M23-9	Contacts Not Included	Nickel	Receptacle Housing		Coupling Nut Rotatable	PE	3	5	9
Amphenol Sine Systems Corp MB1RJN0800	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	Shielded	Circular	Panel Mount Right Angle	For Male Pins	1 mm 2 mm	Zinc Die Cast	Keyed	UL94 V-0	Silver	Flange	IP67 - Dust Tight Waterproof	Crimp	M23-8	Contacts Not Included	Nickel	Receptacle Housing			PE				3	8	4
Amphenol Sine Systems Corp MB1RJN0601	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	Shielded	Circular	Panel Mount Right Angle	For Male Pins	2 mm	Zinc Die Cast	Keyed	UL94 V-0	Silver	Flange	IP67 - Dust Tight Waterproof	Crimp	M23-6	Contacts Not Included	Nickel	Receptacle Housing	6
Amphenol Sine Systems Corp MB1RJN0901	-20 C	130 °C	Polyamide (PA66) Nylon 6/6	Shielded	Circular	Panel Mount Right Angle	For Male Pins	1 mm 2 mm	Zinc Die Cast	Keyed	UL94 V-0	Silver	Flange	IP67 - Dust Tight Waterproof	Crimp	M23-9	Contacts Not Included	Nickel	Receptacle Housing			PE	3	5	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MB1RJN Series

6 (5 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle
