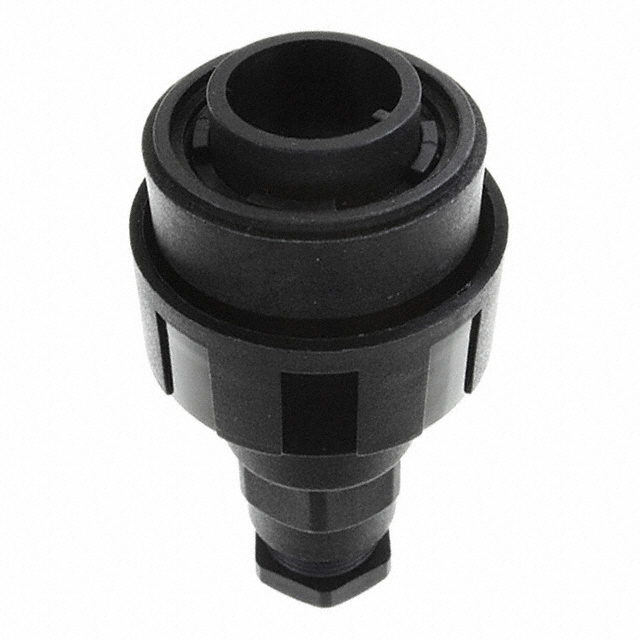

Specification	PX0794/P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Housing Color	Black
Includes	Connector, Backshell, Locking Ring, Gland, Nut, Cage Clamp
Includes Total Count	6 pcs
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Power
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Type	For Male Pins

PX0794 Series

Part	Mounting Type	Number of Positions	Position Types	Material Flammability Rating	Insert Material	Type	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Features	Orientation	Fastening Type	Note	Includes	Includes Total Count	Shielding	Housing Color	Connector Type	Shell Material	Ingress Protection IP Rating	Ingress Protection Description
BULGIN LIMITED PX0794/P	Free Hanging (In-Line)	12	Power	UL94 HB	Nylon PA Polyamide	For Male Pins	Circular	70 °C	-20 °C	Crimp Solder Cup	Backshell Coupling Nut	Keyed	Threaded	Contacts Not Included	Backshell Cage Clamp Connector Gland Locking Ring Nut	6 pcs	Unshielded	Black	Plug Housing	Glass Filled Nylon Polyamide (PA)	IP68	Dust Tight Waterproof
BULGIN LIMITED PX0794/S	Free Hanging (In-Line)	12	Power	UL94 HB	Nylon PA Polyamide	For Female Sockets	Circular	70 °C	-20 °C	Crimp Solder Cup	Backshell Coupling Nut	Keyed	Threaded	Contacts Not Included	Backshell Cage Clamp Connector Gland Locking Ring Nut	6 pcs	Unshielded	Black	Plug Housing	Glass Filled Nylon Polyamide (PA)	IP68	Dust Tight Waterproof
