BT2LH-TL300

Active

Panduit Corp

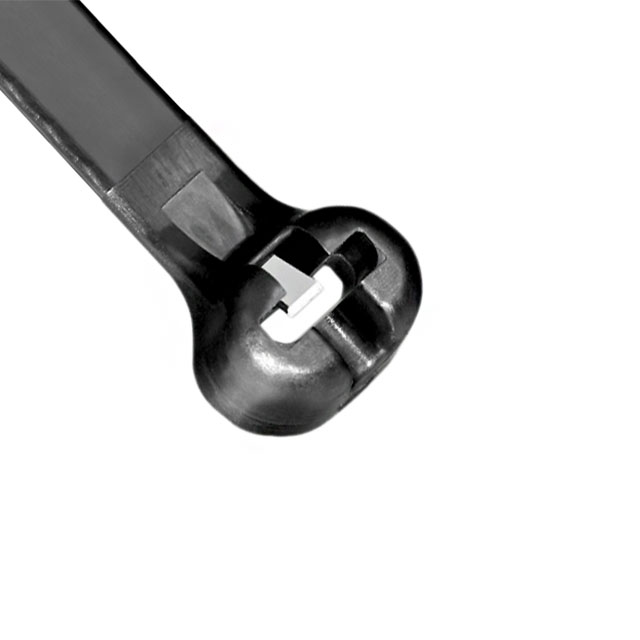

CBL TIE LOCKING BLK 120LB 8.70"

Search across all available documentation for this part.

Active

Panduit Corp

CBL TIE LOCKING BLK 120LB 8.70"

Technical Specifications

Parameters and characteristics for this part

Specification	BT2LH-TL300

Bundle Diameter [diameter]	50.8 mm
Bundle Diameter [diameter]	2 in
Color	Black
Features	Heat Stabilized, Weather Resistant
Length - Actual [x]	220.98 mm
Length - Actual [x]	0.725 ft
Length - Actual [x]	8.7 in
Length - Approximate	8.75 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	54.43 kg
Tensile Strength	120 lbs
Width	7 mm
Width [x]	0.275 "
Wire/Cable Tie Type	Standard, Locking

CBL TIE LOCKING BLK 120LB 8.70"

Part	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Material	Features	Length - Approximate	Mounting Type	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width	Width [x]	Tensile Strength	Tensile Strength	Color	Wire/Cable Tie Type
Panduit Corp BT2LH-TL300	50.8 mm	2 in	Polyamide (PA66), Nylon 6/6	Heat Stabilized, Weather Resistant	8.75 in	Free Hanging (In-Line)	220.98 mm	0.725 ft	8.7 in	7 mm	0.275 "	54.43 kg	120 lbs	Black	Locking, Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Standard, Locking Black 2.00" (50.80mm) 0.275" (7.00mm) 120 lbs (54.43 kg)
