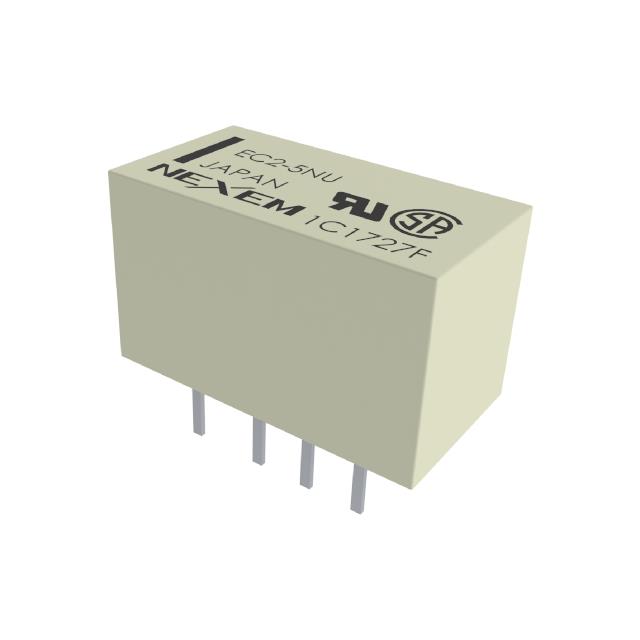

EC2-5NJ
ActiveKEMET
RELAY GENERAL PURPOSE DPDT 2A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC2-5NJ |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Coil Current | 28.1 mA |
| Coil Resistance | 178 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Gold Alloy, Silver Alloy |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 440 W, 500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 1 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.25 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.86 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.63 | |||
| 500 | $ 1.56 | |||
| 1000 | $ 1.50 | |||
| 5000 | $ 1.37 | |||
Description
General part information
EC2-5N Series
General Purpose Relay DPDT (2 Form C) Through Hole
