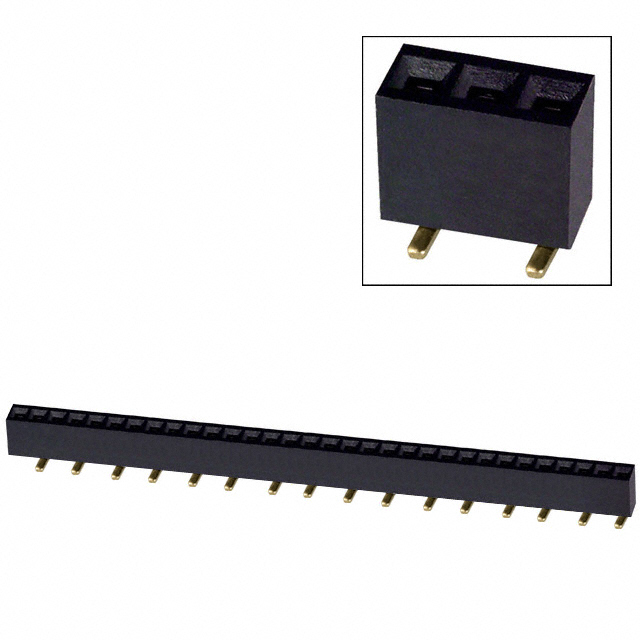

NPPC321KFXC-RC
ActiveSullins Connector Solutions
CONN HDR 32POS 0.1 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
NPPC321KFXC-RC
ActiveSullins Connector Solutions
CONN HDR 32POS 0.1 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NPPC321KFXC-RC |
|---|---|
| Connector Type | Header, Top or Bottom Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 250 VDC |
NPPC321 Series
| Part | Termination | Voltage Rating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Material | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Type | Mounting Type | Contact Finish - Post | Contact Finish Thickness - Post | Insulation Color | Connector Type | Insulation Material | Insulation Height | Insulation Height | Number of Positions Loaded | Fastening Type | Contact Finish Thickness - Mating | Number of Rows | Current Rating (Amps) | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Solder | 250 VDC | UL94 V-0 | -40 °C | 105 ░C | 3.15 mm | 0.124 " | Phosphor Bronze | Square | 0.1 in | 2.54 mm | Female Socket | Through Hole Right Angle | Gold | Flash | Black | Header | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | All | Push-Pull | Flash | 1 | 3 A | Gold |
Sullins Connector Solutions | Solder | 250 VDC | UL94 V-0 | -40 °C | 105 ░C | Phosphor Bronze | Square | 0.1 in | 2.54 mm | Female Socket | Surface Mount | Gold | Flash | Header Top or Bottom Entry | Nylon 6T Polyamide (PA6T) | 0.28 in | 7.1 mm | All | Push-Pull | Flash | 1 | 3 A | Gold | |||
Sullins Connector Solutions | Solder | 250 VDC | UL94 V-0 | -40 °C | 105 ░C | Phosphor Bronze | Square | 0.1 in | 2.54 mm | Female Socket | Surface Mount | Gold | Flash | Black | Header Top or Bottom Entry | Nylon 6T Polyamide (PA6T) | 0.28 in | 7.1 mm | All | Push-Pull | Flash | 1 | 3 A | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1000 | $ 1.78 | |
Description
General part information
NPPC321 Series
32 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
