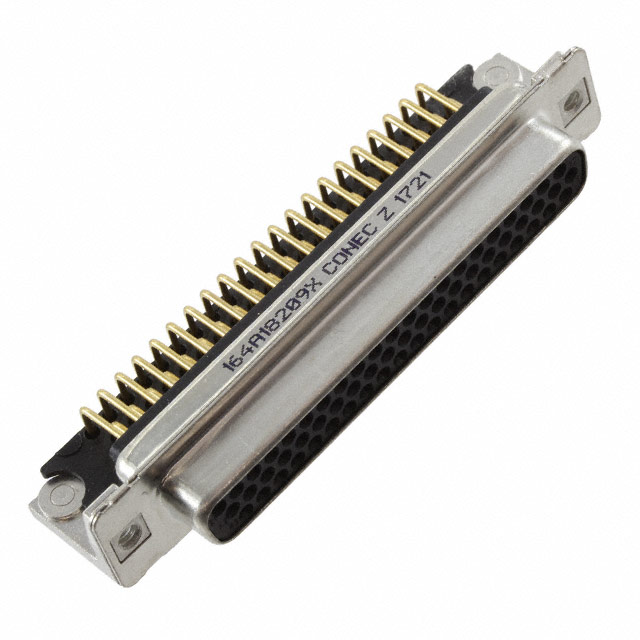

164A18209X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 62P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A18209X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 62P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A18209X

Backset Spacing	0.314 in
Backset Spacing	7.98 mm
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	60 VDC

164A182 Series

Part	Number of Rows	Current Rating (Amps)	Number of Positions	Color	Dielectric Material	Material Flammability Rating	Connector Style	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Connector Type	Mounting Type	Contact Type	Flange Feature	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 164A18269X	3	3 A	26	Black	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Copper Alloy	2	(DA A) High Density	Solder	-55 °C	125 °C	60 VDC	Gold	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Signal	4-40	0.314 in	7.98 mm	8 çin	0.203 çm
Amphenol CONEC 164A18209X	3	3 A	62	Black	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Copper Alloy	4		Solder	-55 °C	125 °C	60 VDC	Gold	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Signal	Housing/Shell (4-40)	0.314 in	7.98 mm	8 çin	0.203 çm
Amphenol CONEC 164A18229X	3	3 A	26	Black	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Copper Alloy	2	(DA A) High Density	Solder	-55 °C	125 °C	60 VDC	Gold	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Signal	Housing/Shell (M3)	0.314 in	7.98 mm	8 çin	0.203 çm
Amphenol CONEC 164A18249X	3	3 A	62	Black	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Copper Alloy	4		Solder	-55 °C	125 °C	60 VDC	Gold	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Signal	Housing/Shell (M3)	0.314 in	7.98 mm	8 çin	0.203 çm
Amphenol CONEC 164A18259X	3	3 A	15	Black	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Copper Alloy			Solder	-55 °C	125 °C	60 VDC	Gold	Receptacle Female Sockets	Board Edge Right Angle Through Hole	Signal	4-40	0.314 in	7.98 mm	8 çin	0.203 çm	DE E	1	High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.18
		10	$ 34.31
		30	$ 32.83
		60	$ 31.77
		120	$ 30.71
		270	$ 29.02

Description

General part information

164A182 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector
