FD300R06KE3HOSA1

Active

Infineon Technologies

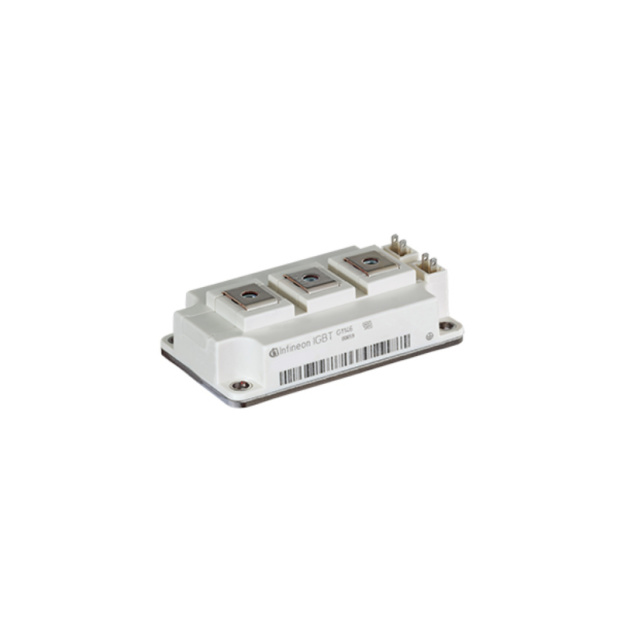

THE FD300R06KE3 IS A CHOPPER IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 600 V AND 300 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FD300R06KE3 IS A CHOPPER IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 600 V AND 300 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FD300R06KE3HOSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	400 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	19 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Package / Case	Module
Power - Max [Max]	940 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	1.9 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	Package / Case	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	NTC Thermistor	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Mounting Type	Configuration	Input Capacitance (Cies) @ Vce	IGBT Type
Infineon Technologies FD300R06KE3HOSA1	Module	5 mA	400 A	1.9 V	940 W		Module	600 V	Standard	Chassis Mount	Single	19 nF	Trench Field Stop

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 87.95

General part information

IGBT Module Trench Field Stop Single 600 V 400 A 940 W Chassis Mount Module
