Description

General part information

821B Series

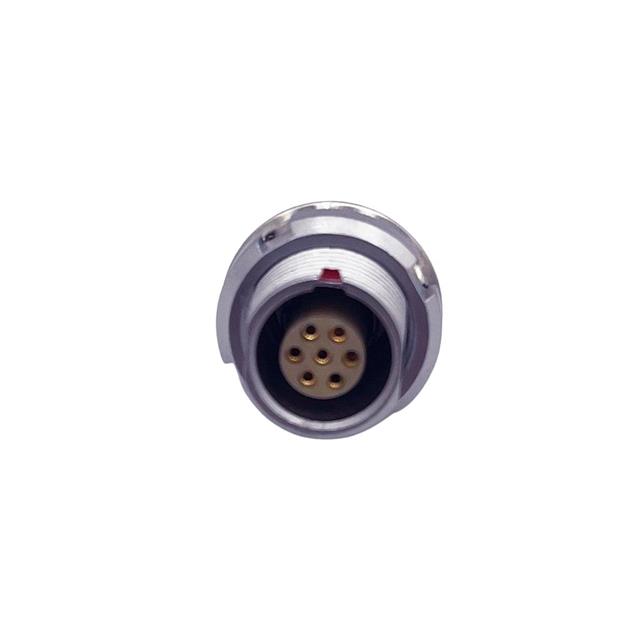

The 821B007-213R001 from Norcomp is an 821B series IP50 rated-12mm push pull female connector with 7 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.

Technical Specifications

Parameters and characteristics for this part

Specification	821B007-213R001

Applications	Telecommunications, Medical, Instrumentation, Testing Equipment & Measurement, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	7 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	7
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Solder
Voltage Rating	315 V

821B Series

Part	Mounting Type	Termination	Plating	Backshell Material	Fastening Type	Shell Material	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Cable Opening (Min)	Cable Opening (Max)	Voltage Rating	Contact Finish Thickness - Mating	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Insert Material	Contact Material	Features	Number of Positions	Applications	Shell Finish	Shielding	Current Rating	Color	Connector Type	Orientation	Mounting Feature	Cable Opening
NorComp Inc. 821B007-173L501	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.169 in	0.205 in	315 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Male Pins Plug	Keyed
NorComp Inc. 821B006-273L501	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.169 in	0.205 in	350 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Female Sockets Receptacle	Keyed
NorComp Inc. 821B006-273L301	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.098 in	0.126 in	350 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Female Sockets Receptacle	Keyed
NorComp Inc. 821B014-203R001	Panel Mount	Solder Cup			Push-Pull	Brass	Gold	-40 °C	200 °C			260 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy		14	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	2 A	Silver	Female Sockets Receptacle	Keyed	Bulkhead Front Side Nut
NorComp Inc. 821B014-173L301	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.098 in	0.126 in	260 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	14	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	2 A	Black Silver	Male Pins Plug	Keyed
NorComp Inc. 821B003-103R001	Panel Mount	Solder Cup			Push-Pull	Brass	Gold	-40 °C	200 °C			430 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy		3	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	12 A	Silver	Male Pins Plug	Keyed	Bulkhead Rear Side Nut	0.413 in
NorComp Inc. 821B002-173L301	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.098 in	0.126 in	500 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	2	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	15 A	Black Silver	Male Pins Plug	Keyed
NorComp Inc. 821B007-273L501	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.169 in	0.205 in	315 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Female Sockets Receptacle	Keyed
NorComp Inc. 821B006-173L301	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.098 in	0.126 in	350 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	6	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Male Pins Plug	Keyed
NorComp Inc. 821B007-173L301	Free Hanging (In-Line)	Solder Cup	Chrome	Brass	Push-Pull	Brass	Gold	-40 °C	200 °C	0.098 in	0.126 in	315 V	7 µin	Dust Protected	IP50	Metal	Polyphenylene Sulfide PPS	Copper Alloy	Backshell Strain Relief	7	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Nickel	Shielded	7 A	Black Silver	Male Pins Plug	Keyed
