821B003-103R001

Active

MH Connectors

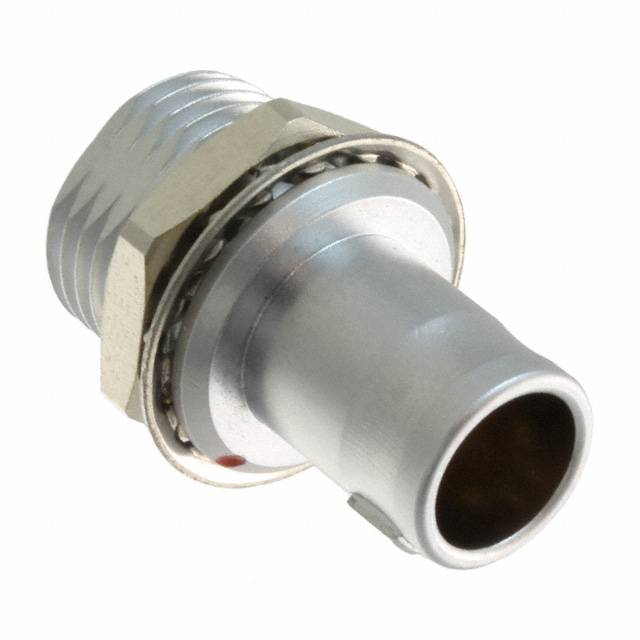

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

821B003-103R001

Active

MH Connectors

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	821B003-103R001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Cable Opening [custom]	0.413 in
Cable Opening [custom]	10.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Voltage Rating	430 V

821B Series

Part	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Shielding	Color	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shell Material	Current Rating (Amps)	Shell Finish	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Voltage Rating	Fastening Type	Primary Material	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Mounting Feature	Cable Opening [custom]	Cable Opening [custom]
MH Connectors 821B007-173L501	Gold	Male Pins Plug	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)	5.2 mm	0.205 in	0.169 in	4.3 mm	Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	315 V	Push-Pull	Metal	7
MH Connectors 821B006-273L501	Gold	Receptacle Female Sockets	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)	5.2 mm	0.205 in	0.169 in	4.3 mm	Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	350 V	Push-Pull	Metal	6
MH Connectors 821B006-273L301	Gold	Receptacle Female Sockets	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	350 V	Push-Pull	Metal	6	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 821B014-173L301	Gold	Male Pins Plug	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	2 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	260 V	Push-Pull	Metal	14	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 821B003-103R001	Gold	Male Pins Plug		Shielded	Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm		Brass	12 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50		430 V	Push-Pull	Metal						Bulkhead - Rear Side Nut	0.413 in	10.5 mm
MH Connectors 821B002-173L301	Gold	Male Pins Plug	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	15 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	500 V	Push-Pull	Metal	2	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 821B007-273L501	Gold	Receptacle Female Sockets	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)	5.2 mm	0.205 in	0.169 in	4.3 mm	Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	315 V	Push-Pull	Metal	7
MH Connectors 821B006-173L301	Gold	Male Pins Plug	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	350 V	Push-Pull	Metal	6	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 821B007-173L301	Gold	Male Pins Plug	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)					Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	7 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	315 V	Push-Pull	Metal	7	0.098 in	2.5 mm	0.126 in	3.2 mm
MH Connectors 821B014-273L501	Gold	Receptacle Female Sockets	Brass Chrome	Shielded	Black Silver	Polyphenylene Sulfide (PPS)	5.2 mm	0.205 in	0.169 in	4.3 mm	Copper Alloy	Keyed	7 µin	0.178 µm	Free Hanging (In-Line)	Brass	2 A	Nickel	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	200 °C	-40 °C	IP50	Backshell Strain Relief	260 V	Push-Pull	Metal	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	36	$ 23.62

Description

General part information

821B Series

3 Position Circular Connector Plug, Male Pins Solder Cup
