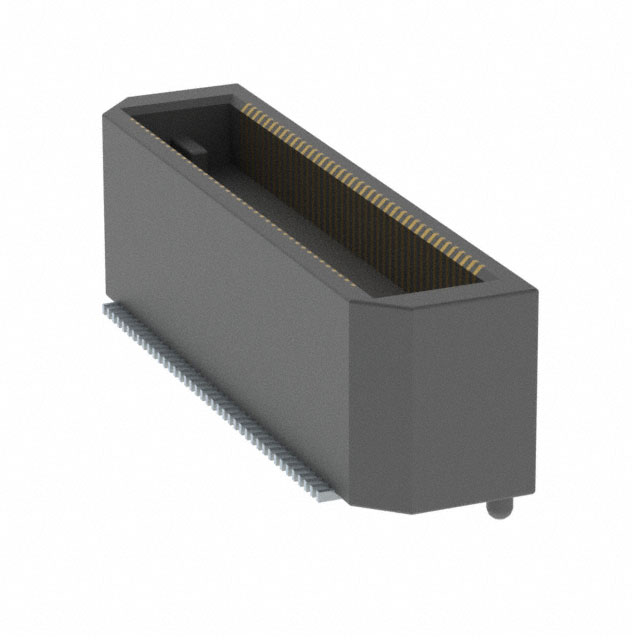

BTH-040-02-F-D-A

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-040-02-F-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	7.26 mm
Height Above Board	0.286 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Features	Number of Positions	Height Above Board	Height Above Board	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
Samtec Inc. BTH-040-02-F-D-A	2	0.5 mm	0.02 in	Gold	8 mm	Board Guide	80	7.26 mm	0.286 "	Header Outer Shroud Contacts	3 Áin	0.076 Ám	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
