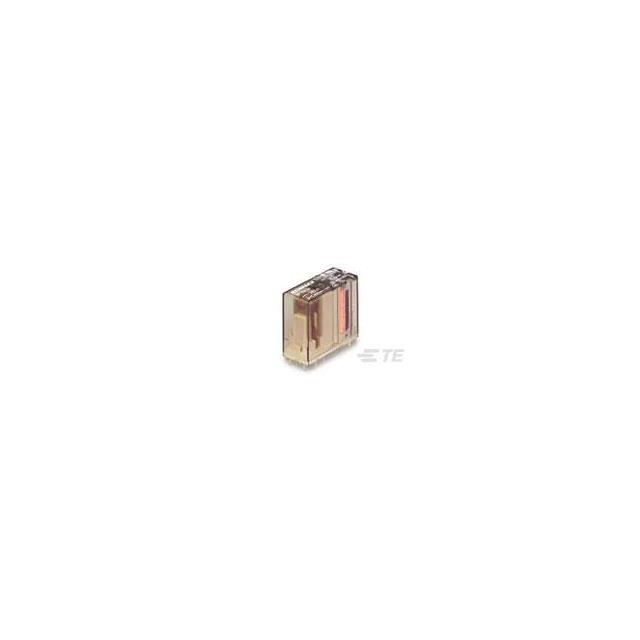

1-1393231-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 12V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 8A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 8A 12V

Part	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Contact Material	Release Time	Operate Time	Must Release Voltage	Coil Type	Must Operate Voltage	Contact Rating (Current)	Mounting Type	Termination Style	Coil Resistance	Switching Voltage [Max]	Relay Type	Coil Voltage	Seal Rating
TE Connectivity Potter & Brumfield Relays 1-1393231-1	44.4 mA	-40 °C	70 °C	SPDT (1 Form C)	Silver Nickel (AgNi)	2 ms	8 ms	1.2 VDC	Non Latching	8.4 VDC	8 A	Through Hole	PC Pin	270 Ohms	400 VAC	General Purpose	12 VDC	Sealed - Flux Protection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
