7380-2SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7380-2SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Current Rating (Amps)	Mounting Feature	Shielding	Connector Type	Color	Number of Positions	Applications	Contact Material	Primary Material	Backshell Material, Plating	Fastening Type	Contact Finish - Mating	Orientation	Ingress Protection	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination
Conxall/Switchcraft 7380-2SG-300	Varies by Wire Gauge	Bulkhead - Front Side Nut	Unshielded	Receptacle, Female Sockets	Black	2	Automotive, Communication Systems, Instrumentation	Brass	Plastic	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Keyed	Weathertight	600 V	-40 °C	115 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

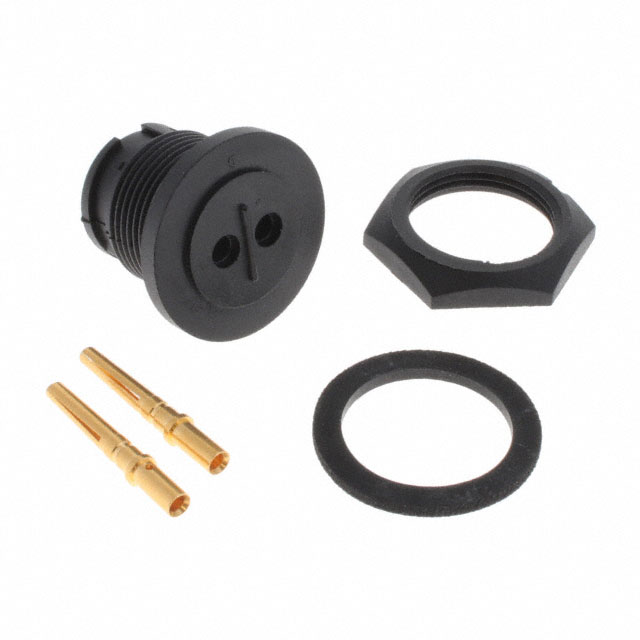

2 Position Circular Connector Receptacle, Female Sockets Crimp
