Description
General part information
019211 Series

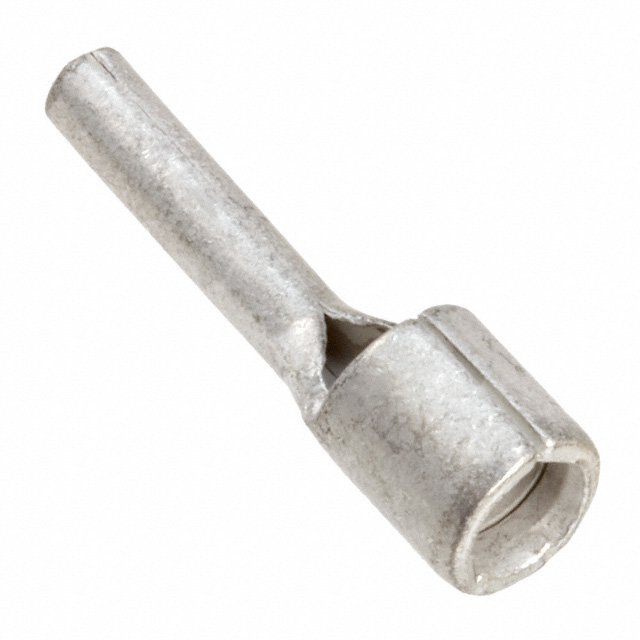

Wire Pin Terminal Connector 18-22 AWG Krimptite Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192110004 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.054 in |
| Insulation | Non-Insulated |
| Length - Overall | 0.68 in |
| Length - Pin | 0.35 " |
| Length - Termination | 0.165 in |
| Pin Diameter | 0.078 in |
| Pin Diameter Shape | Circular |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
