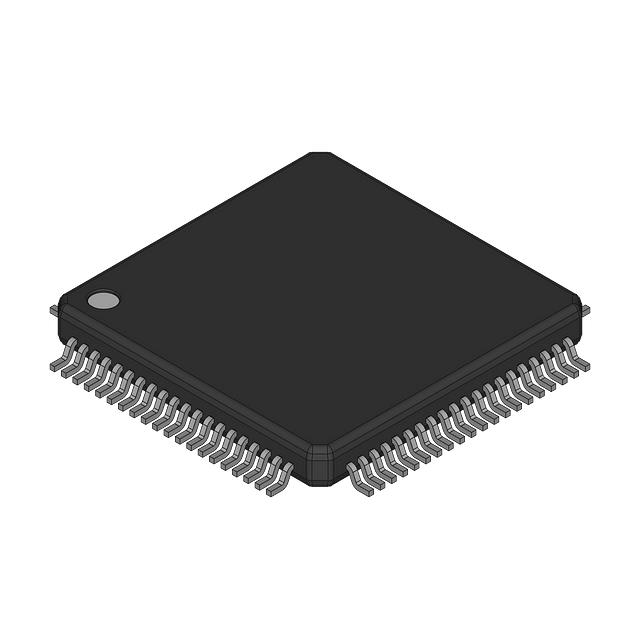

MC9SDJ128BCFUR2
ActiveFreescale Semiconductor - NXP
16-BIT, FLASH, 25MHZ PQFP80
Deep-Dive with AI
Search across all available documentation for this part.
MC9SDJ128BCFUR2
ActiveFreescale Semiconductor - NXP
16-BIT, FLASH, 25MHZ PQFP80
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MC9SDJ128BCFUR2 |
|---|---|
| Connectivity | SCI, I2C, CANbus, SPI |
| Core Processor | CPU12 |
| Core Size | 16-Bit |
| Data Converters [custom] | 8 |
| Data Converters [custom] | 10 |
| EEPROM Size | 2K x 8 |
| Mounting Type | Surface Mount |
| Number of I/O | 59 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 80-QFP |
| Peripherals | WDT, PWM |
| Program Memory Size | 128 KB |
| Program Memory Type | FLASH |
| RAM Size | 8 K |
| Speed | 50 MHz |
| Supplier Device Package | 80-QFP (14x14) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 19 | $ 16.62 | |
Description
General part information
MC9SDJ128 Series
CPU12 - Microcontroller IC 16-Bit 50MHz 128KB (128K x 8) FLASH 80-QFP (14x14)
Documents
Technical documentation and resources
No documents available
