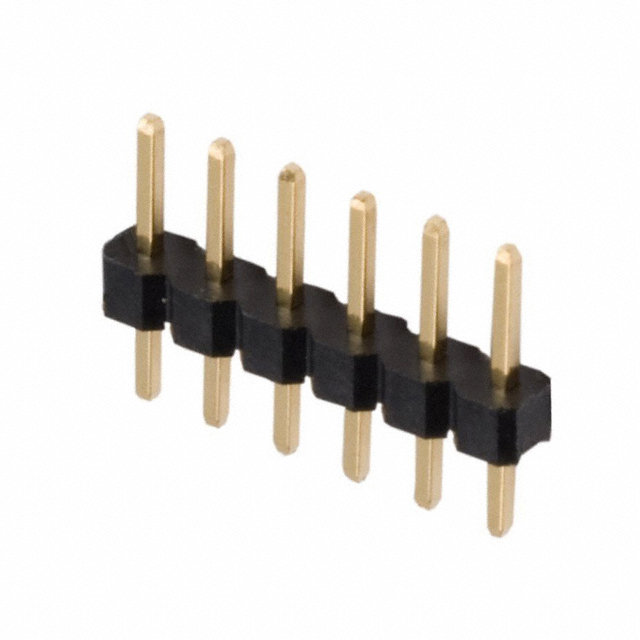

Specification	M22-2510605

Connector Type	Header, Cuttable
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Post	0.091 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Height Options	5.9mm, 8.6mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.287 in
Pitch - Mating	0.079 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

M22-251 Series

Part	Number of Rows	Current Rating (Per Contact)	Contact Finish - Mating	Contact Length - Post	Fastening Type	Pitch - Mating	Style	Overall Contact Length	Number of Positions Loaded	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Number of Positions	Connector Type	Contact Finish - Post	Insulation Material	Contact Shape	Contact Material	Mounting Type	Contact Length - Mating	Material Flammability Rating	Insulation Color	Insulation Height	Termination	Shrouding	Mated Stacking Height Options
Harwin Inc. M22-2510646	1	1 A	Tin	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	6	Cuttable Header	Tin	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2511205	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	12	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2512505	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	25	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2511646	1	1 A	Tin	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	16	Cuttable Header	Tin	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2510905	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	9	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2512046	1	1 A	Tin	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	20	Cuttable Header	Tin	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2511005	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	10	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2510405	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	4	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2510605	1	1 A	Gold	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	6	Cuttable Header		Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
Harwin Inc. M22-2510346	1	1 A	Tin	0.091 in	Push-Pull	0.079 in	Board	0.287 in	All	-40 °C	105 °C	Male Pin	3	Cuttable Header	Tin	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Through Hole	0.138 in	UL94 V-0	Black	0.059 in	Solder	Unshrouded	5.9mm 8.6mm
