L16D1S001-AZZ00-000

Active

Carling Technologies

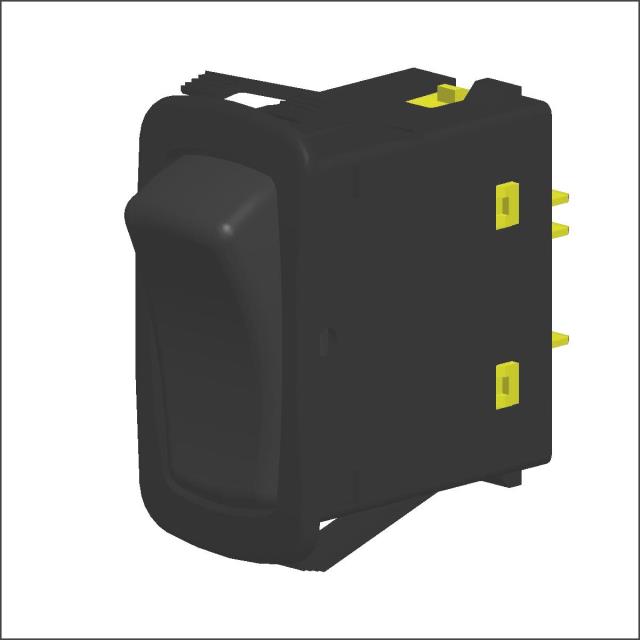

SWITCH ROCKER SPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER SPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.54

General part information

Rocker Switch SPDT 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	L16D1S001-AZZ00-000	L16D1S001 Series

Actuator Marking	No Marking	Low Beam, Vertical, No Marking
Actuator Type	Concave (Curved)	Concave (Curved), Paddle, Actuator Arm, Cap Required
Circuit	SPDT	SPDT
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	44.04 mm	44.04 mm
Panel Cutout Dimensions [y]	22.02 mm	22.02 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPDT 20A 12V

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Mechanical Life	Voltage Rating - DC	Actuator Type	Electrical Life	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Mounting Type	Actuator Marking
Carling Technologies L16D1S001-AZZYA-1YB	On-Off-On	85 °C	-40 °C	Black	20 A	Quick Connect - 0.250" (6.3mm)	100000 Cycles	12 V	Concave (Curved)	100000 Cycles	SPDT	44.04 mm	22.02 mm	IP67 - Dust Tight, Waterproof	Panel Mount, Snap-In	Low Beam, Vertical
Carling Technologies L16D1S001-JZZY8-1Z1	On-Off-On	85 °C	-40 °C	Black	20 A	Quick Connect - 0.250" (6.3mm)	100000 Cycles	12 V	Paddle	100000 Cycles	SPDT	44.04 mm	22.02 mm	IP67 - Dust Tight, Waterproof	Panel Mount, Snap-In	Low Beam, Vertical
Carling Technologies L16D1S001-00000-000	On-Off-On	85 °C	-40 °C		20 A	Quick Connect - 0.250" (6.3mm)	100000 Cycles	12 V	Actuator Arm, Cap Required	100000 Cycles	SPDT	44.04 mm	22.02 mm	IP67 - Dust Tight, Waterproof	Panel Mount, Snap-In	No Marking
Carling Technologies L16D1S001-AZZ00-000	On-Off-On	85 °C	-40 °C	Black	20 A	Quick Connect - 0.250" (6.3mm)	100000 Cycles	12 V	Concave (Curved)	100000 Cycles	SPDT	44.04 mm	22.02 mm	IP67 - Dust Tight, Waterproof	Panel Mount, Snap-In	No Marking
