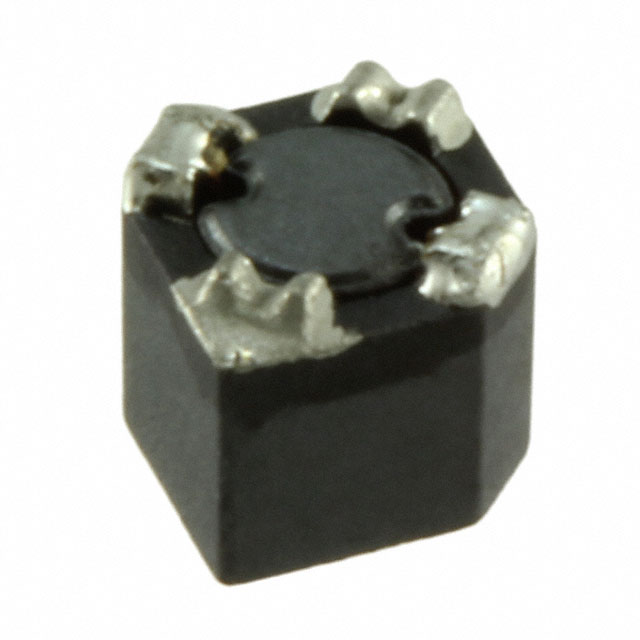

SRU3028A-150Y
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 15UH 30% 100KHZ 18Q-FACTOR FERRITE 0.66A 0.29OHM DCR AUTOMOTIVE AEC-Q200 T/R
SRU3028A-150Y
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 15UH 30% 100KHZ 18Q-FACTOR FERRITE 0.66A 0.29OHM DCR AUTOMOTIVE AEC-Q200 T/R
Description
General part information
SRU3028A Series
15 µH Shielded Drum Core, Wirewound Inductor 660 mA 290mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU3028A-150Y |
|---|---|
| Current - Saturation (Isat) | 720 mA |
| Current Rating | 660 mA |
| DC Resistance (DCR) (Max) | 290 mOhm |
| Frequency - Self Resonant | 25 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 18 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.13 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
