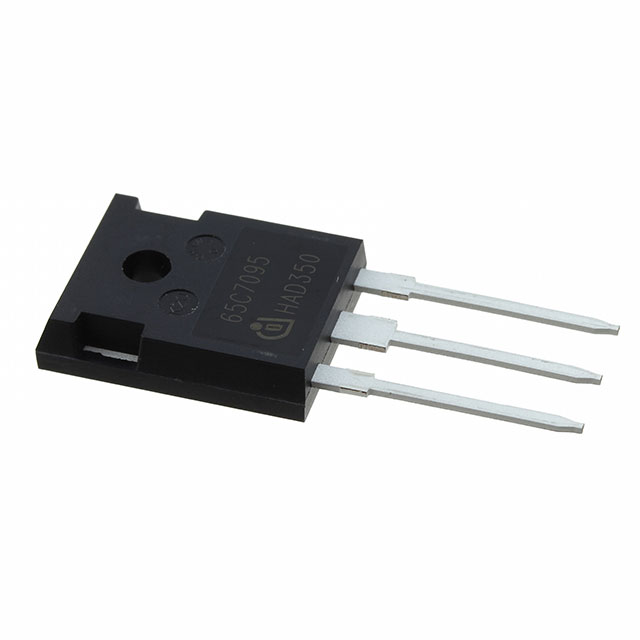

IKW40N120T2FKSA1
NRND1200 V, 40 A DISCRETE WITH TRENCHSTOP™ IGBT4 AND FREE WHEELING DIODE IN A TO247 PACKAGE. WITH A SWITCHING FREQUENCY RANGE FROM 2-20 KHZ, LOW SWITCHING LOSSES AND LOW EMI EMISSIONS IT FITS PERFECTLY FOR YOUR UPS, SOLAR SYSTEMS, MOTOR DRIVES AND WELDING.
Deep-Dive with AI
Search across all available documentation for this part.
IKW40N120T2FKSA1
NRND1200 V, 40 A DISCRETE WITH TRENCHSTOP™ IGBT4 AND FREE WHEELING DIODE IN A TO247 PACKAGE. WITH A SWITCHING FREQUENCY RANGE FROM 2-20 KHZ, LOW SWITCHING LOSSES AND LOW EMI EMISSIONS IT FITS PERFECTLY FOR YOUR UPS, SOLAR SYSTEMS, MOTOR DRIVES AND WELDING.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IKW40N120T2FKSA1 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 75 A |
| Gate Charge | 192 nC |
| IGBT Type | Trench |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | TO-247-3 |
| Power - Max [Max] | 480 W |
| Reverse Recovery Time (trr) | 258 ns |
| Supplier Device Package | PG-TO247-3-1 |
| Switching Energy | 5.25 mJ |
| Td (on/off) @ 25°C | 314 ns, 33 ns |
| Test Condition | 600 V, 12 Ohm, 15 V, 40 A |
| Vce(on) (Max) @ Vge, Ic | 2.2 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IKW40N120 Series
The IKW40N120T2 is a Low Loss IGBT in 2nd generation TrenchStop® technology with soft, fast recovery anti-parallel emitter controlled diode. The TrenchStop® IGBT technology leads to significant improvement of static as well as dynamic performance of the device, due to combination of TrenchStop®-cell and field-stop concept. The combination of IGBT with soft recovery emitter controlled diode further minimizes the turn-ON losses. The highest efficiency is reached due to the best compromise between switching and conduction losses.
