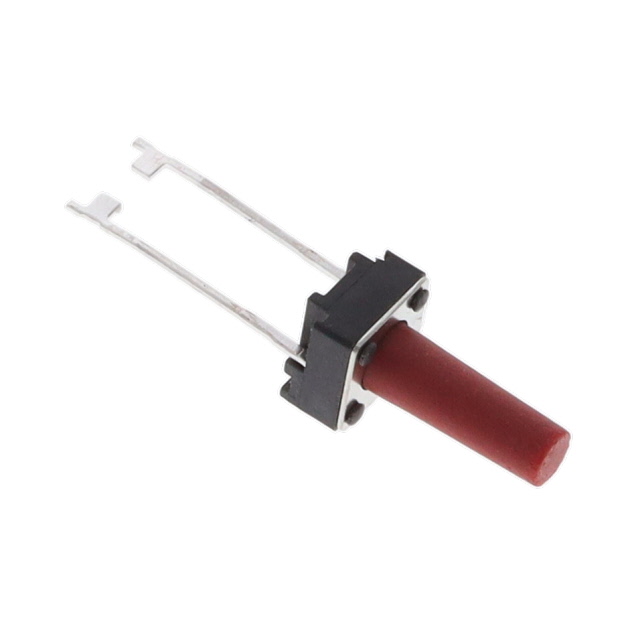

TL59DF260Q

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; THT; NONE; 2.55N; 13MM

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST; POS: 2; 0.05A/12VDC; THT; NONE; 2.55N; 13MM

Technical Specifications

Parameters and characteristics for this part

Specification	TL59DF260Q

Actuator Height off PCB, Vertical [z]	13 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Material	Operating Force	Outline [y]	Outline [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Illumination	Switch Function	Switch Travel	Actuator Height off PCB, Vertical [z]	Actuator Type	Contact Rating @ Voltage	Actuator Orientation	Termination Style	Mounting Type	Circuit
E-Switch TL59DF260Q	Polybutylene Terephthalate (PBT)	260 gf	6.2 mm	6.2 mm	-20 C	70 °C	100000 Cycles	Non-Illuminated	Off-Mom	0.25 mm	13 mm	Standard	0.05 A 12 VDC	Top Actuated	PC Pin	Through Hole	SPST-NO
E-Switch TL59DF160Q	Polybutylene Terephthalate (PBT)		6.2 mm	6.2 mm	-20 C	70 °C	100000 Cycles	Non-Illuminated	Off-Mom	0.25 mm	13 mm	Standard	0.05 A 12 VDC	Top Actuated	PC Pin	Through Hole	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
