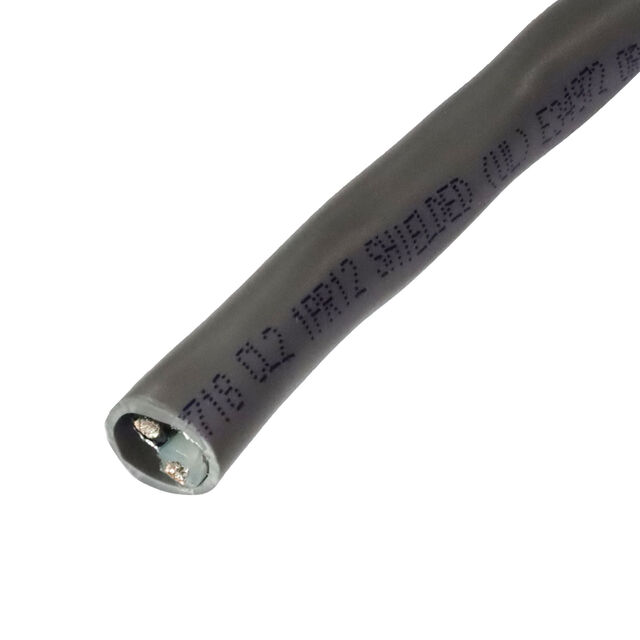

8718 060U500

Active

Belden Inc.

CABLE 2CON 12AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 12AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8718 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.4 "
Jacket (Insulation) Diameter [diameter]	10.16 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 20253
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	12 AWG

Part	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Material	Ratings	Shield Material	Usage	Features	Wire Gauge	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 8718 0602000	Polyethylene (PE)	609.6 m	2000 ft	Poly-Vinyl Chloride (PVC)	UL Style 20253	Aluminum	Audio Control Instrumentation	Drain Wire	12 AWG	100 %	-20 C	80 C	Copper Tinned	Multi-Conductor	0.864 mm	0.034 in	Foil	19	25	Chrome	2	0.4 "	10.16 mm
Belden Inc. 8718 060U500	Polyethylene (PE)	152.4 m	500 '	Poly-Vinyl Chloride (PVC)	UL Style 20253	Aluminum	Audio Control Instrumentation	Drain Wire	12 AWG	100 %	-20 C	80 C	Copper Tinned	Multi-Conductor	0.864 mm	0.034 in	Foil	19	25	Chrome	2	0.4 "	10.16 mm
Belden Inc. 8718 0601000	Polyethylene (PE)			Poly-Vinyl Chloride (PVC)	UL Style 20253	Aluminum	Audio Control Instrumentation	Drain Wire	12 AWG	100 %	-20 C	80 C	Copper Tinned	Multi-Conductor	0.864 mm	0.034 in	Foil	19	25	Chrome	2	0.4 "	10.16 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.85

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 12 AWG Foil 500.0' (152.4m)
