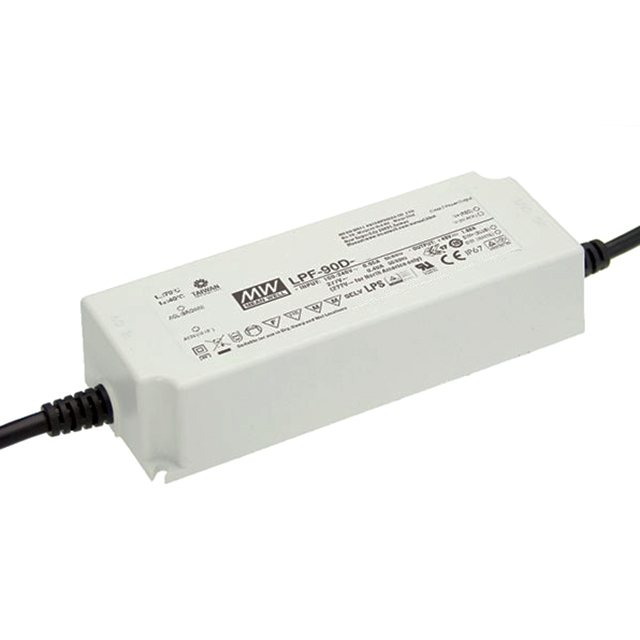

LPF-90D-48

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 28.8-48V 1.88A

Deep-Dive with AI

Search across all available documentation for this part.

LPF-90D-48

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 28.8-48V 1.88A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPF-90D-48

Approval Agency	CE, PSE, CCC, CB, UR, TUV
Current - Output (Max) [Max]	1.88 A
Dimming	Analog, PWM
Efficiency	90.5 %
Features	OVP, OCP, OTP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	90 W
Ratings	IP67
Size / Dimension [x]	161 mm
Size / Dimension [x]	6.34 "
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	28.8 V

LPF-90 Series

Part	Voltage - Isolation	Features	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Number of Outputs	Efficiency	Termination Style	Voltage - Input (Min) [Min]	Type	Voltage - Output [Max]	Voltage - Output [Min]	Dimming
MEAN WELL USA Inc. LPF-90-54	3750 V	OCP OTP OVP	CB CCC CE PSE TUV UR	1.67 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	91 %	Wire Leads	90 VAC	Constant Current Voltage	54 V	32.4 V
MEAN WELL USA Inc. LPF-90D-15	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	5 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	75 W	1	89 %	Wire Leads	90 VAC	Constant Current			Analog PWM
MEAN WELL USA Inc. LPF-90-24	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	3.75 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	90.5 %	Wire Leads	90 VAC	Constant Current Voltage	24 V	14.4 V
MEAN WELL USA Inc. LPF-90-30	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	3 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	91 %	Wire Leads	90 VAC	Constant Current Voltage
MEAN WELL USA Inc. LPF-90D-54	3750 V	OCP OTP OVP	CB CCC CE PSE TUV UR	1.67 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	90.5 %	Wire Leads	90 VAC	Constant Current	54 V	32.4 V	Analog PWM
MEAN WELL USA Inc. LPF-90-42	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	2.15 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	91 %	Wire Leads	90 VAC	Constant Current Voltage	42 V	25.2 V
MEAN WELL USA Inc. LPF-90-36	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	2.5 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	91 %	Wire Leads	90 VAC	Constant Current Voltage	36 V	21.6 V
MEAN WELL USA Inc. LPF-90D-48	3750 V	OCP OTP OVP	CB CCC CE PSE TUV UR	1.88 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	90.5 %	Wire Leads	90 VAC	Constant Current	48 V	28.8 V	Analog PWM
MEAN WELL USA Inc. LPF-90D-20	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	4.5 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1		Wire Leads	90 VAC	Constant Current	20 V	12 V	Analog PWM
MEAN WELL USA Inc. LPF-90D-30	3750 V	OCP OTP OVP	CB CCC CE cURus PSE TUV	3 A	305 VAC	Chassis Mount	AC DC Converter	-40 °C	70 °C	IP67	36 mm	161 mm	2.4 "	61 mm	6.34 "	1.42 in	90 W	1	90.5 %	Wire Leads	90 VAC	Constant Current			Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.61
		5	$ 40.43
		10	$ 39.14
		25	$ 37.49

Description

General part information

LPF-90 Series

1.88A 28.8 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

No documents available
