CX20ABKABK
ActiveSerpac
ENCLOSURE PLAS 1.68"L X 1.45"W
Deep-Dive with AI
Search across all available documentation for this part.
CX20ABKABK
ActiveSerpac
ENCLOSURE PLAS 1.68"L X 1.45"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CX20ABKABK |
|---|---|
| Area (L x W) | 2.43 in² |
| Area (L x W) | 15.7 cm² |
| Color | Black |
| Container Type | Enclosure |
| Design | Cover Included, Hand Held |
| Height [z] | 12.95 mm |
| Height [z] | 0.51 " |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | NEMA 4X, IP67, 13, 12 |
| Size / Dimension [x] | 42.67 mm |
| Size / Dimension [x] | 1.68 " |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.83 mm |
| Thickness | 2.03 mm |
| Thickness | 0.08 " |
CX20A Series
| Part | Ratings | Design | Thickness | Thickness | Container Type | Material Flammability Rating | Material | Area (L x W) | Area (L x W) | Height [z] | Height [z] | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Serpac | 12 13 IP67 NEMA 4X | Cover Included Hand Held | 2.03 mm | 0.08 " | Enclosure | UL94 V-2 | Plastic Polycarbonate | 2.43 in² | 15.7 cm² | 12.95 mm | 0.51 " | Black Blue | 1.45 in | 42.67 mm | 1.68 " | 36.83 mm |
Serpac | 12 13 IP67 NEMA 4X | Cover Included Hand Held | 2.03 mm | 0.08 " | Enclosure | UL94 V-2 | Plastic Polycarbonate | 2.43 in² | 15.7 cm² | 12.95 mm | 0.51 " | 1.45 in | 42.67 mm | 1.68 " | 36.83 mm | |
Serpac | 12 13 IP67 NEMA 4X | Cover Included Hand Held | 2.03 mm | 0.08 " | Enclosure | UL94 V-2 | Plastic Polycarbonate | 2.43 in² | 15.7 cm² | 12.95 mm | 0.51 " | Black Neon Orange | 1.45 in | 42.67 mm | 1.68 " | 36.83 mm |
Serpac | 12 13 IP67 NEMA 4X | Cover Included Hand Held | 2.03 mm | 0.08 " | Enclosure | UL94 V-2 | Plastic Polycarbonate | 2.43 in² | 15.7 cm² | 12.95 mm | 0.51 " | Black Orange | 1.45 in | 42.67 mm | 1.68 " | 36.83 mm |
Serpac | 12 13 IP67 NEMA 4X | Cover Included Hand Held | 2.03 mm | 0.08 " | Enclosure | UL94 V-2 | Plastic Polycarbonate | 2.43 in² | 15.7 cm² | 12.95 mm | 0.51 " | Black | 1.45 in | 42.67 mm | 1.68 " | 36.83 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.49 | |
Description
General part information
CX20A Series

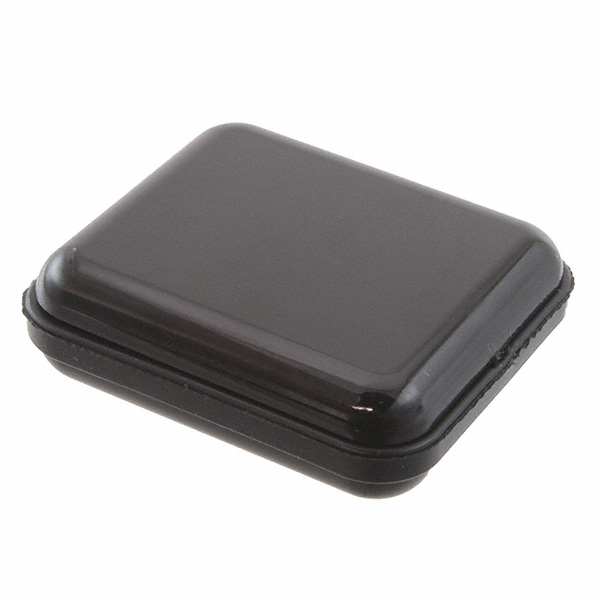

Enclosure Plastic, Polycarbonate Black Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.510" (12.95mm)
Documents
Technical documentation and resources
No documents available
