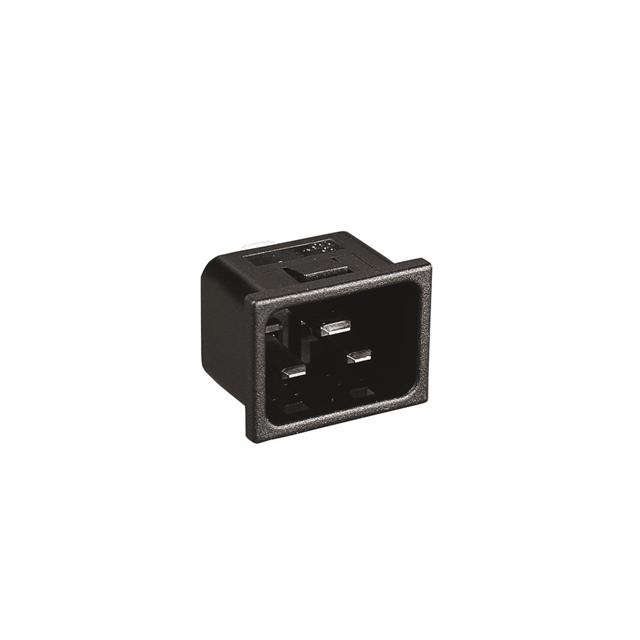

PX0598/15/63
ActiveBULGIN LIMITED
CONN POWER M 3 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
PX0598/15/63
ActiveBULGIN LIMITED
CONN POWER M 3 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0598/15/63 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 16 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 32.3 mm |
| Panel Cutout Dimensions [y] | 24.3 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
PX0598 Series
| Part | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Connector Type | Approval Agency | Accomodates a Fuse | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Filter Type | Termination | Termination | Termination | Panel Thickness [custom] | Panel Thickness [custom] | Mounting Type | Connector Style | Material Flammability Rating | Panel Thickness | Panel Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 16 A | 250 VAC | Male Blades Receptacle | CSA ENEC UL VDE | 32.3 mm | 24.3 mm | Unfiltered - Commercial | 0.25 in | 6.3 mm | Quick Connect | 0.059 in | 1.5 mm | Panel Mount Snap-In | IEC 320-C20 | UL94 V-0 | |||
BULGIN LIMITED | 16 A | 250 VAC | Male Blades Receptacle | CSA ENEC UL VDE | 32.3 mm | 24.3 mm | Unfiltered - Commercial | 0.25 in | 6.3 mm | Quick Connect | Panel Mount Snap-In | IEC 320-C20 | UL94 V-0 | 3 mm | 0.118 in | |||
BULGIN LIMITED | 16 A | 250 VAC | Male Blades Receptacle | CSA ENEC UL VDE | 32.3 mm | 24.3 mm | Unfiltered - Commercial | 0.189 " 4.8 mm | Quick Connect | 0.059 in | 1.5 mm | Panel Mount Snap-In | IEC 320-C20 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PX0598 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Snap-In
