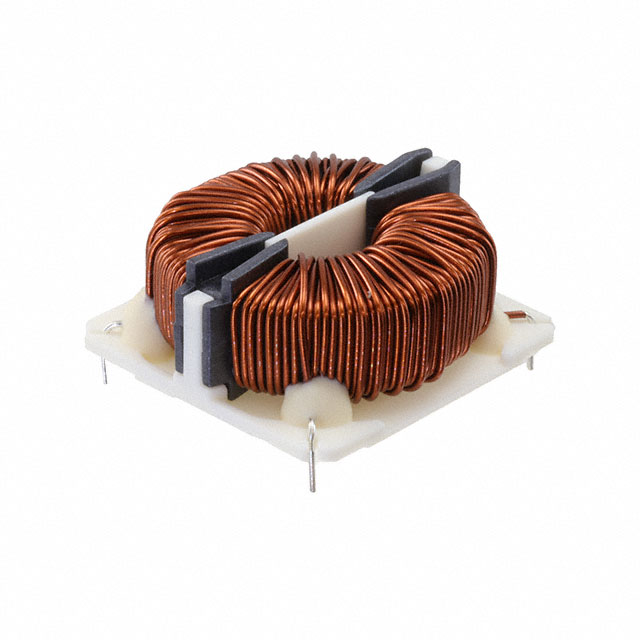

SC-030-E150JH-P - SC-030-E150JH-P

SC-030-E150JH-P

Active
KEMET

COMMON MODE FILTER, 15MH, 3A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0010_SC-JH.pdfDatasheet+2
SC-030-E150JH-P - SC-030-E150JH-P

SC-030-E150JH-P

Active
KEMET

COMMON MODE FILTER, 15MH, 3A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_LF0010_SC-JH.pdfDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSC-030-E150JH-P
Current Rating (Max) [Max]3 A
Filter TypePower Line
Height (Max)14.5 mm
Height (Max) [Max]0.571 in
Inductance @ Frequency10 kHz, 15 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Package / Case2 Lead
Package / CaseHorizontal
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 5.49
10$ 4.59
30$ 4.19
60$ 3.59
90$ 3.29
240$ 3.19
450$ 3.09
960$ 2.89
2400$ 2.79
NewarkEach 1$ 5.71
10$ 3.43
25$ 3.34
50$ 3.23
100$ 3.14
500$ 3.04
1000$ 2.89
2500$ 2.83

Description

General part information

SC-030 Series

15 mH 2 Line Common Mode Choke Through Hole 3A DCR
