2816-3-00-01-00-00-07-0
ActiveMill-Max Manufacturing Corp.

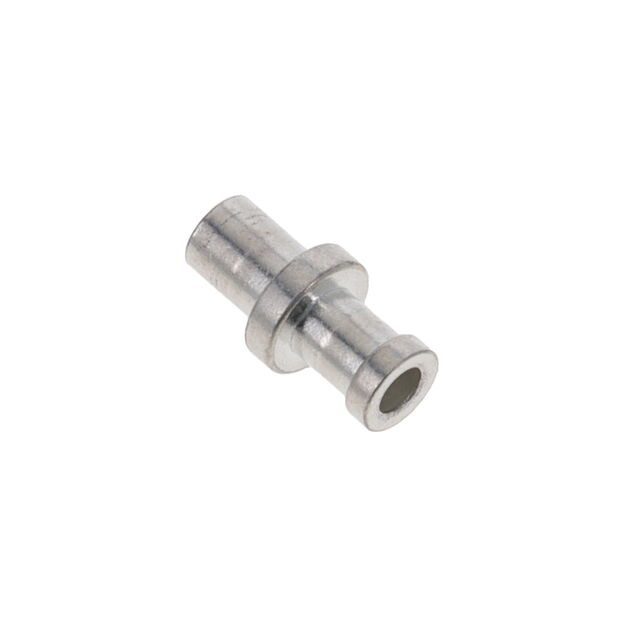

TERM TURRET SINGLE L=4.75MM
Deep-Dive with AI
Search across all available documentation for this part.
2816-3-00-01-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=4.75MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2816-3-00-01-00-00-07-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.85 mm |
| Diameter - Turret Head [diameter] | 0.073 in |
| Flange Diameter [diameter] | 0.171 " |
| Flange Diameter [diameter] | 4.34 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.187 in |
| Length - Above Board [x] | 4.75 mm |
| Length - Below Flange [x] | 3.58 mm |
| Length - Below Flange [x] | 0.141 in |
| Length - Overall | 0.328 in |
| Length - Overall | 8.33 mm |
| Mounting Hole Diameter [diameter] | 0.116 in |
| Mounting Hole Diameter [diameter] | 2.95 mm |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID | 2.11 mm |
| Staking Side ID | 0.083 in |
| Staking Side OD [diameter] | 0.112 in |
| Staking Side OD [diameter] | 2.84 mm |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 100 | $ 0.84 | |||
| 1000 | $ 0.61 | |||
| 5000 | $ 0.54 | |||
| 10000 | $ 0.51 | |||
Description
General part information
2816-3 Series
Terminal Turret Connector Single End 0.187" (4.75mm) Tin-Lead
