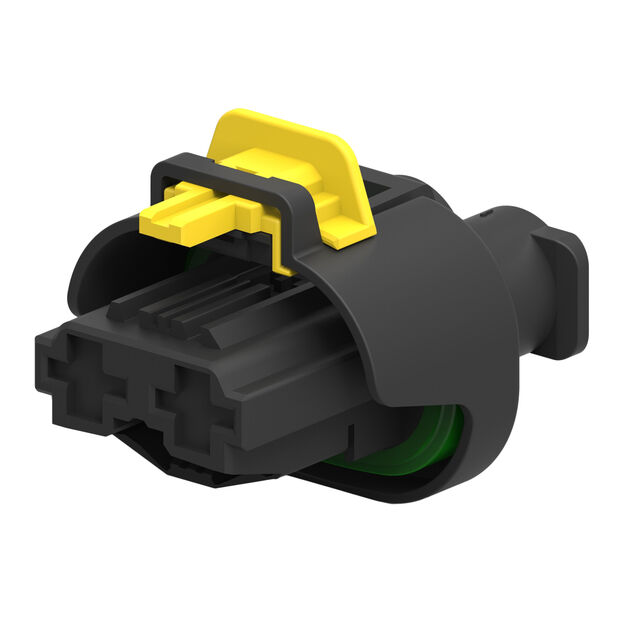

Specification	1544650-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA), Terminal Position Assurance (TPA)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Pitch	0.472 in

NG Power Terminals and Connectors Series

Part	Length - Overall	Gender	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination	Contact Material	Mounting Type	Contact Finish	Insulation	Tab Width	Terminal Type	Tab Thickness	Tab Length	Material	Note	Terminal Size	Style	For Use With/Related Products	Color	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Fastening Type	Features	Number of Rows	Contact Termination	Connector Type	Insulation Material	Tool Type	Insulation Diameter (Max)	Insulation Diameter (Min)	Pitch
TE Connectivity AMP Connectors 1801431-1	1.177 in	Female	14 AWG	12 AWG	Crimp	Copper	Free Hanging (In-Line)	Tin	Non-Insulated	0.366 in	Standard
TE Connectivity AMP Connectors 1544964-2	1.181 in	Female	14 AWG	12 AWG	Crimp	Copper Alloy	Free Hanging (In-Line)	Tin	Non-Insulated	0.315 in	Standard	0.039 in	0.429 in
TE Connectivity AMP Connectors 1544346-1
TE Connectivity AMP Connectors 1544351-1		Female Receptacle					Free Hanging (In-Line) Right Angle				Disconnect Quick Connect			Glass Filled Polyester	Contacts Not Included	0.25 in	Housing	0.250" (6.35mm) Quick Connects Flag	Black	1
TE Connectivity AMP Connectors 1544606-2							Free Hanging (In-Line)												Blue	1	100 °C	-40 °C	Tab	Locking Ramp	Sealed	1	Crimp	Housing for Male Insert	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 7-1579018-0																		Rectangular Contacts												Extraction Tool
TE Connectivity AMP Connectors 7-1579018-0																		1544218-1 1544965-1 1544966-1												Extraction Tool
TE Connectivity AMP Connectors 1544106-1	1.181 in	Female	9 AWG	7 AWG	Crimp	Copper Alloy	Free Hanging (In-Line)	Tin	Non-Insulated	0.315 in	Standard	0.032 in	0.433 in
TE Connectivity AMP Connectors 1544615-1	0.843 in	Female	22 AWG	19 AWG	Crimp	Copper Alloy	Free Hanging (In-Line)	Tin	Non-Insulated	0.25 in	Standard	0.032 in	0.327 in																		0.071 in	0.05 in
TE Connectivity AMP Connectors 1544334-3							Free Hanging (In-Line)												Gray	2	125 °C	-40 °C	Tab	Locking Ramp	Terminal Position Lock (TPA)	1	Crimp	Housing for Female Insert	Glass Filled Polybutylene Terephthalate (PBT)				0.472 in
