NG Power Terminals and Connectors Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RCPT CONT, 8MM NG1+, MAXIFUSE, 2.5-4 MM2
| Part | Gender | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Termination | Contact Material | Mounting Type | Contact Finish | Insulation | Tab Width | Terminal Type | Tab Thickness | Tab Length | Length - Overall | Material | Note | Terminal Size | Style | For Use With/Related Products | Color | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Fastening Type | Features | Number of Rows | Contact Termination | Connector Type | Insulation Material | Tool Type | Insulation Diameter (Max) | Insulation Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Female | 14 AWG | 12 AWG | Crimp | Copper | Free Hanging (In-Line) | Tin | Non-Insulated | 0.366 in | Standard | ||||||||||||||||||||||
TE Connectivity AMP Connectors | Female | 14 AWG | 12 AWG | Crimp | Copper Alloy | Free Hanging (In-Line) | Tin | Non-Insulated | 0.315 in | Standard | 0.039 in | 0.429 in | 1.181 in | |||||||||||||||||||
 TE Connectivity AMP Connectors | ||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Female Receptacle | Free Hanging (In-Line) Right Angle | Disconnect Quick Connect | Glass Filled Polyester | Contacts Not Included | 0.25 in | Housing | 0.250" (6.35mm) Quick Connects Flag | Black | 1 | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Blue | 1 | 100 °C | -40 °C | Tab | Locking Ramp | Sealed | 1 | Crimp | Housing for Male Insert | Glass Filled Polybutylene Terephthalate (PBT) | ||||||||||||||||||||

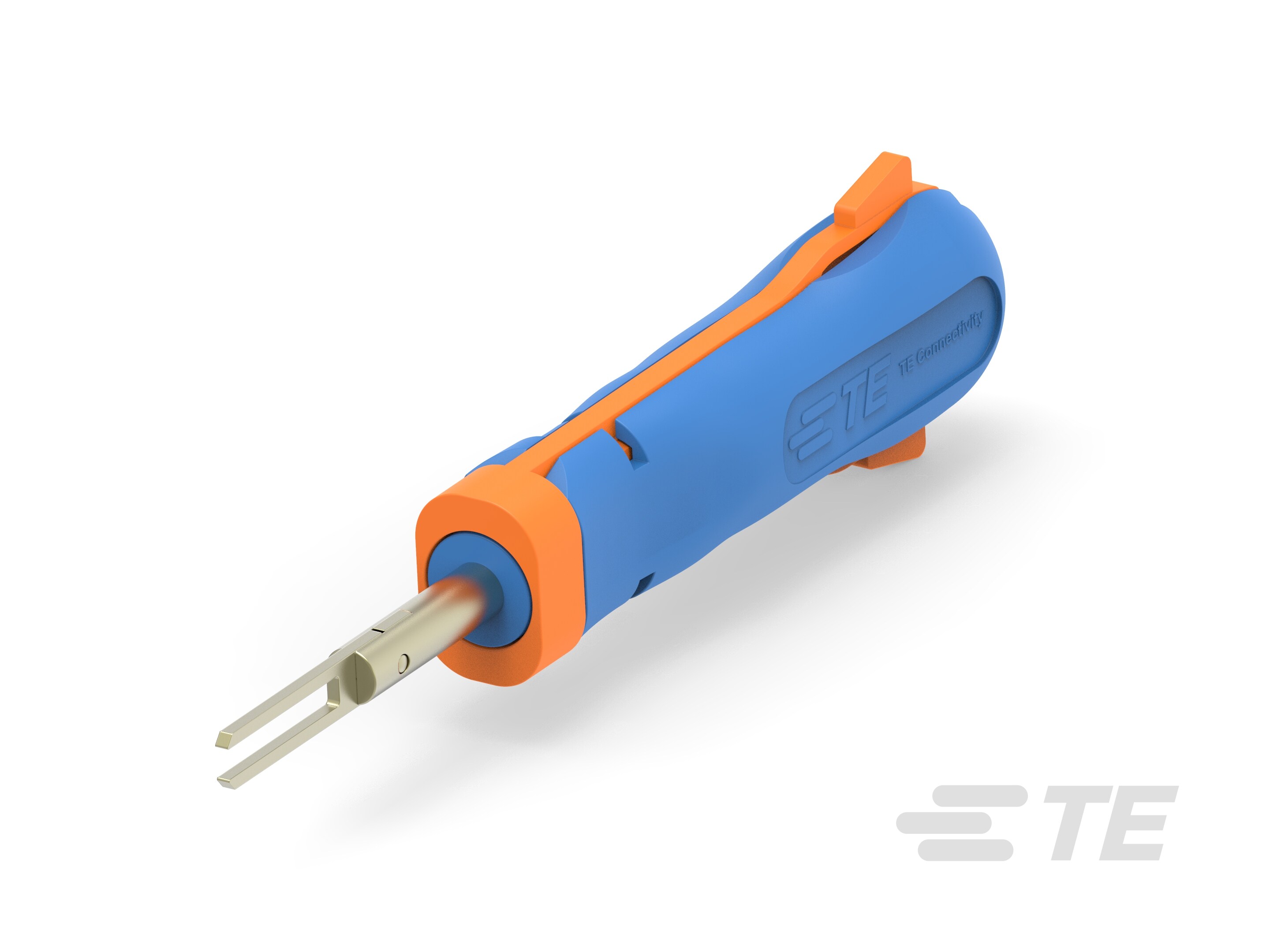

 TE Connectivity AMP Connectors | Rectangular Contacts | Extraction Tool | ||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | 1544218-1 1544965-1 1544966-1 | Extraction Tool | ||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Female | 9 AWG | 7 AWG | Crimp | Copper Alloy | Free Hanging (In-Line) | Tin | Non-Insulated | 0.315 in | Standard | 0.032 in | 0.433 in | 1.181 in | |||||||||||||||||||
 TE Connectivity AMP Connectors | Female | 22 AWG | 19 AWG | Crimp | Copper Alloy | Free Hanging (In-Line) | Tin | Non-Insulated | 0.25 in | Standard | 0.032 in | 0.327 in | 0.843 in | 0.071 in | 0.05 in | |||||||||||||||||
 TE Connectivity AMP Connectors |
