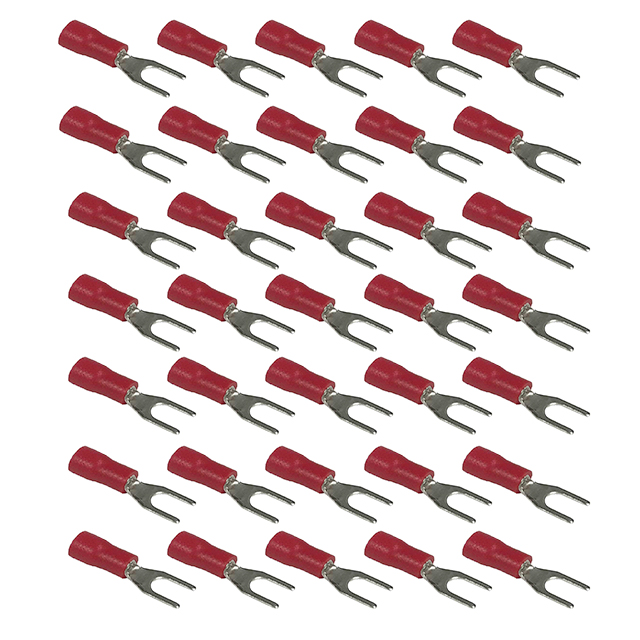

SVS1.25-4-100

Active

Remington Industries

FORK TERMINALS, PVC INSULATED, 1

Search across all available documentation for this part.

Active

Remington Industries

FORK TERMINALS, PVC INSULATED, 1

Technical Specifications

Parameters and characteristics commom to parts in this series

FORK TERMINALS, PVC INSULATED, 1

Part	Wire Gauge [Max]	Wire Gauge [Min]	Color	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Terminal Type	Contact Material	Material - Insulation	Contact Finish	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Width - Outer Edges
Remington Industries SVS1.25-4-10	22 AWG	16 AWG	Red	8 Stud	0.252 in	6.4 mm	Crimp	Free Hanging (In-Line)	4.29 mm	0.169 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm
Remington Industries SVS1.25-4-100	22 AWG	16 AWG	Red	8 Stud	0.252 in	6.4 mm	Crimp	Free Hanging (In-Line)	4.29 mm	0.169 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm
Remington Industries SVS1.25-3.5-10	22 AWG	16 AWG	Red				Crimp	Free Hanging (In-Line)	3.71 mm	0.146 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm	0.224 in	5.7 mm	6 Stud
Remington Industries SVS1.25-5-10	22 AWG	16 AWG	Red				Crimp	Free Hanging (In-Line)	5.31 mm	0.209 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm	0.319 "		10 Stud	8.1 mm
Remington Industries SVS1.25-3.5-100	22 AWG	16 AWG	Red				Crimp	Free Hanging (In-Line)	3.71 mm	0.146 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm	0.224 in	5.7 mm	6 Stud
Remington Industries SVS1.25-5-100	22 AWG	16 AWG	Red				Crimp	Free Hanging (In-Line)	5.31 mm	0.209 in	Insulated	Standard	Copper	Poly-Vinyl Chloride (PVC)	Tin	0.827 in	21 mm	0.319 "		10 Stud	8.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.36

General part information

Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG
