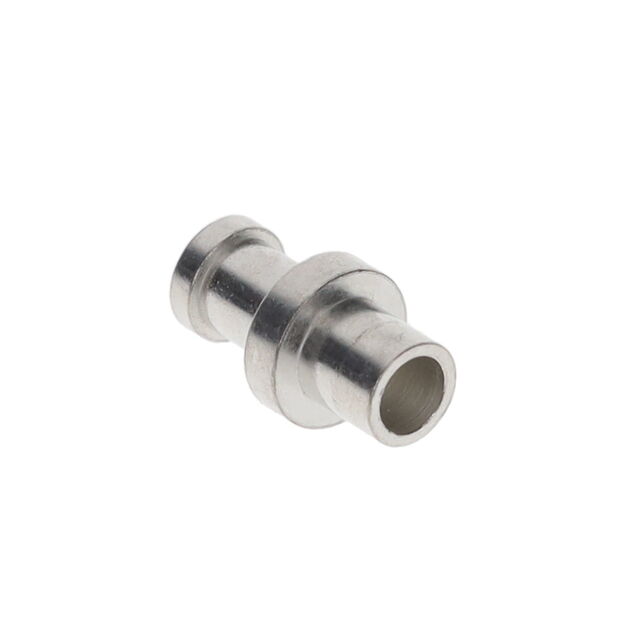

2816-2-00-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SNG
Deep-Dive with AI
Search across all available documentation for this part.
2816-2-00-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SNG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2816-2-00-80-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.85 mm |
| Diameter - Turret Head [diameter] | 0.073 in |
| Flange Diameter [diameter] | 0.171 " |
| Flange Diameter [diameter] | 4.34 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.187 in |
| Length - Above Board [x] | 4.75 mm |
| Length - Below Flange [x] | 2.77 mm |
| Length - Below Flange [x] | 0.109 in |
| Length - Overall [x] | 0.296 in |
| Length - Overall [x] | 7.52 mm |
| Mounting Hole Diameter [diameter] | 0.116 in |
| Mounting Hole Diameter [diameter] | 2.95 mm |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID | 2.11 mm |
| Staking Side ID | 0.083 in |
| Staking Side OD [diameter] | 0.112 in |
| Staking Side OD [diameter] | 2.84 mm |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.10 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.84 | |||
| 1000 | $ 0.61 | |||
| 5000 | $ 0.53 | |||
| 10000 | $ 0.51 | |||
Description
General part information
2816-2 Series
Terminal Turret Connector Single End 0.187" (4.75mm) Tin
