826662-3

Active

TE Connectivity AMP Connectors

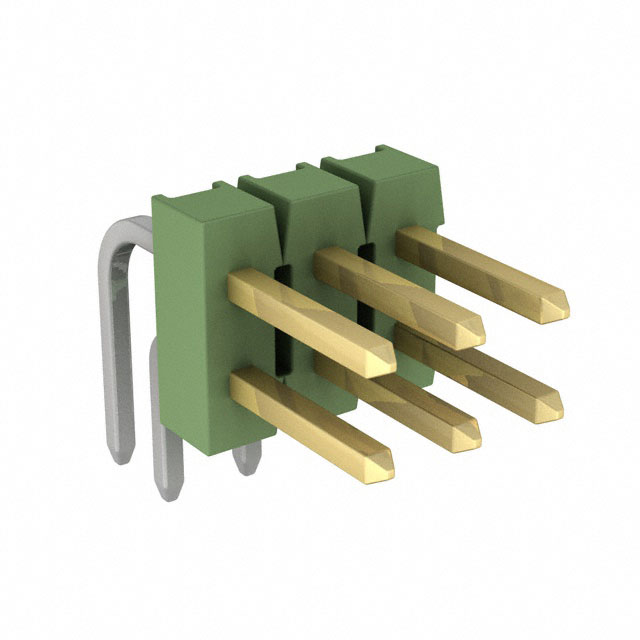

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826662-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7200	$ 0.42

Description

General part information

826662 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826662-3	826662 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	5.56 mm	5.56 mm
Insulation Height [z]	0.219 in	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	4 - 64
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826662 Series

CONN HEADER R/A 12POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Post	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Style	Material Flammability Rating	Contact Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Shape	Number of Rows	Shrouding	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height	Contact Finish - Mating	Contact Material	Connector Type	Number of Positions
TE Connectivity AMP Connectors 826662-6	2.54 mm	0.1 in	12	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
TE Connectivity AMP Connectors 826662-8	2.54 mm	0.1 in		Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header	16
TE Connectivity AMP Connectors 826662-4	2.54 mm	0.1 in	8	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
TE Connectivity AMP Connectors 826662-3	2.54 mm	0.1 in	6	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
TE Connectivity AMP Connectors 826662-2	2.54 mm	0.1 in	4	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
TE Connectivity AMP Connectors 3-826662-2	2.54 mm	0.1 in	64	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
TE Connectivity AMP Connectors 1-826662-7	2.54 mm	0.1 in	34	Tin	Green	Polybutylene Terephthalate (PBT)	0.099 µm	3.9 µin	0.1 in	2.54 mm	-65 ░C	105 ░C	All	3.2 mm	0.126 in	Board to Board, Cable	UL94 V-0	Male Pin	Solder	3 µm	118.1 µin	5 A	Square	2	Unshrouded	Push-Pull	Through Hole, Right Angle	0.228 in	5.8 mm	0.219 in	5.56 mm	Gold	Brass	Breakaway, Header
