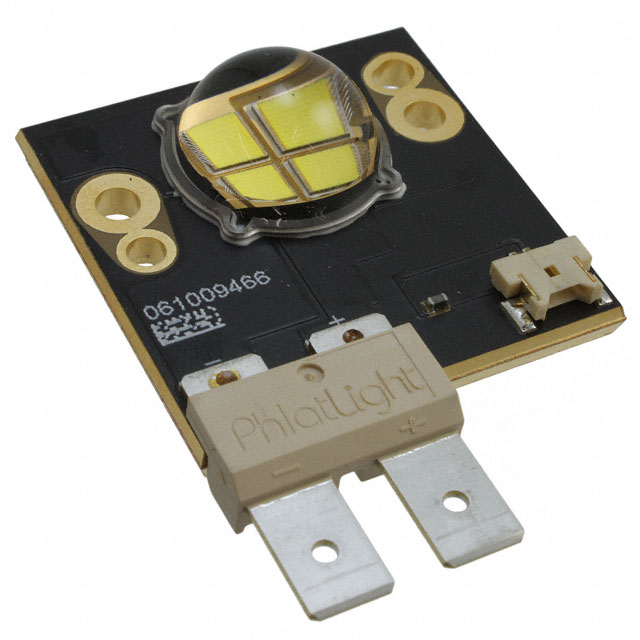

CSM-360-WCLS-D22-GX450

Obsolete

Luminus Devices Inc.

LED MOD CSM-360 WHT RECT 4000K

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD CSM-360 WHT RECT 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	CSM-360-WCLS-D22-GX450

CCT (K) [Max]	4500 K
CCT (K) [Min]	4000 K
Color	Neutral, White
Configuration	Rectangle
CRI (Color Rendering Index)	70
Current - Max [Max]	6.3 A
Current - Test	3.15 A
Features	With Connector
Height [z]	5.61 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	16 mm
Size / Dimension [x]	36 mm
Size / Dimension [y]	51 mm
Temperature - Test	40 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	13.14 V

Part	CCT (K)	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Features	Current - Test	Height [z]	Type	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Color	Temperature - Test	Viewing Angle	CCT (K) [Min]	CCT (K) [Max]
Luminus Devices Inc. CSM-360-W40S-D22-GV500	4000 K	16 mm	6.3 A	3300 lm	36 mm	51 mm	70	With Connector	3.15 A	12.2 mm	LED Module	Domed	Square	14.15 V	74 lm/W	Neutral White
Luminus Devices Inc. CSM-360-WCLS-D22-GX450		16 mm	6.3 A		51 mm	36 mm	70	With Connector	3.15 A	5.61 mm	LED Module	Domed	Rectangle	13.14 V		Neutral White	40 °C	115 °	4000 K	4500 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module CSM-360 White, Neutral Rectangle
