F1238L48B1-FHR-CC-GB

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog DC Lead Wire Specs +1

F1238L48B1-FHR-CC-GB

Active

Mechatronics Fan Group

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog DC Lead Wire Specs +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.44

Description

General part information

F1238 Series

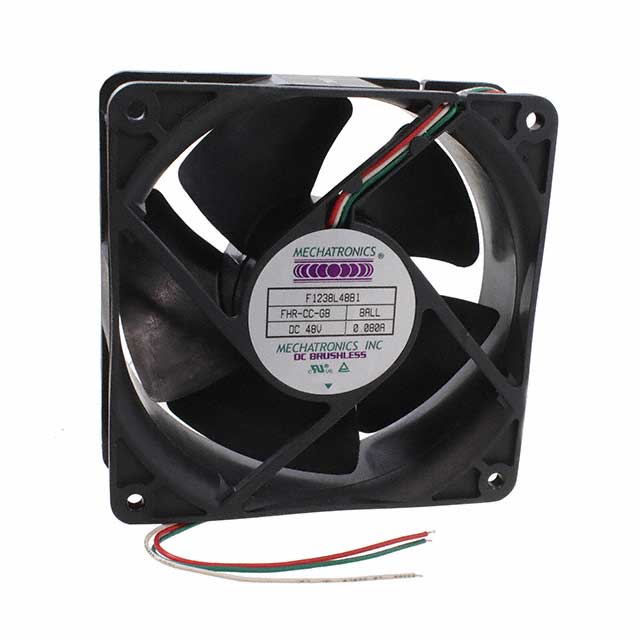

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 93.0 CFM (2.60mł/min) 3 Wire Leads

Documents

Technical documentation and resources

AC/DC Fans & Blowers Catalog

Datasheet

DC Lead Wire Specs

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F1238L48B1-FHR-CC-GB	F1238 Series

Air Flow	2.6 m³/min	2.27 - 112 mł/min
Air Flow	93 CFM	81 - 140 CFM
Air Flow	-	3.14 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 - 800 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Auto Restart, Conformal Coating	Locked Rotor Protection, Auto Restart, Speed Sensor (Tach), Alarm Sensor, Conformal Coating, Locked Rotor Sensor, Thermistor
Material - Blade	-	Polybutylene Terephthalate (PBT)
Noise	35 dB	33 - 47 dB
RPM	2400 RPM	1800 - 3600 RPM
Size / Dimension [x]	119 mm	119 mm
Size / Dimension [y]	119 mm	119 mm
Static Pressure	49.8 Pa	34.9 - 92.2 Pa
Static Pressure	0.2 in H2O	0.14 - 0.37 in H2O
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads, 4 Wire Leads, 2 Terminals
Voltage - Rated	-	5 - 24 VDC
Voltage - Rated [custom]	48 VDC	48 VDC
Weight	0.59 lb	0.097 - 0.59 lb
Weight	267.62 g	44 - 267.62 g
Width [y]	38 mm	38 mm

F1238 Series

FAN AXIAL 119X38MM 24VDC WIRE

Part	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Termination	Width [y]	Bearing Type	Fan Type	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Noise	Features	Voltage - Rated	Voltage - Rated [custom]	Weight	Weight	Material - Blade
Mechatronics Fan Group F1238H24B-FSR	CE, cUL, TUV, UL	119 mm	119 mm	0.22 A	2 Wire Leads	38 mm	Ball	Tubeaxial	0.25 in H2O	62.3 Pa	3.22 mł/min	115 CFM	2500 RPM	41 dB	Auto Restart, Locked Rotor Protection	24 VDC
Mechatronics Fan Group F1238E48B1-FSR-TTL	CE, cUL, TUV, UL	119 mm	119 mm	0.21 A	3 Wire Leads	38 mm	Ball	Tubeaxial	0.28 in H2O	69.7 Pa	3.53 m³/min	126 CFM	2800 RPM	43 dB	Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)		48 VDC
Mechatronics Fan Group F1238H12B1-FSR-WS	CE, cUL, TUV, UL	119 mm	119 mm	0.44 A	4 Wire Leads	38 mm	Ball	Tubeaxial	0.25 in H2O	62.3 Pa	3.22 mł/min	115 CFM	2500 RPM	41 dB	Alarm Sensor, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)	12 VDC
Mechatronics Fan Group F1238L48B1-FHR-CC-GB	CE, cUL, TUV, UL	119 mm	119 mm		3 Wire Leads	38 mm	Ball	Tubeaxial	0.2 in H2O	49.8 Pa	2.6 m³/min	93 CFM	2400 RPM	35 dB	Auto Restart, Conformal Coating, Speed Sensor (Tach)		48 VDC	0.59 lb	267.62 g
Mechatronics Fan Group F1238E12B-FSR	CE, cUL, TUV, UL	119 mm	119 mm	0.7 A	2 Wire Leads	38 mm	Ball	Tubeaxial	0.28 in H2O	69.7 Pa	3.53 m³/min	126 CFM	2800 RPM	43 dB	Auto Restart, Locked Rotor Protection	12 VDC
Mechatronics Fan Group F1238H12B2-FS	CE, cUL, TUV, UL	119 mm	119 mm	0.44 A	3 Wire Leads	38 mm	Ball	Tubeaxial	0.25 in H2O	62.3 Pa	3.22 mł/min	115 CFM	2500 RPM	41 dB	Auto Restart, Locked Rotor Sensor	12 VDC
Mechatronics Fan Group F1238M12B1-FSR	CE, cUL, TUV, UL	119 mm	119 mm	360 mA	3 Wire Leads	38 mm	Ball	Tubeaxial	0.21 in H2O	52.3 Pa	2.94 m³/min	105 CFM	2300 RPM	38 dB(A)	Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)	12 VDC
Mechatronics Fan Group F1238L05B-FS	CE, cUL, TUV, UL	119 mm	119 mm	800 mA	2 Wire Leads	38 mm	Ball	Tubeaxial	0.2 in H2O	49.8 Pa	2.6 m³/min	93 CFM	2400 RPM	35 dB	Auto Restart	5 V				Polybutylene Terephthalate (PBT)
Mechatronics Fan Group F1238X24B2-FSR	CE, cUL, TUV, UL	119 mm	119 mm	0.5 A	3 Wire Leads	38 mm	Ball	Tubeaxial	0.3 in H2O	74.7 Pa	3.92 mł/min	140 CFM	3100 RPM	45 dB(A)	Auto Restart, Locked Rotor Sensor	24 VDC
Mechatronics Fan Group F1238L05B-FSR	CE, cUL, TUV, UL	119 mm	119 mm	800 mA	2 Wire Leads	38 mm	Ball	Tubeaxial	0.17 in H2O	42.3 Pa	2.63 m³/min	94 CFM	2050 RPM	36 dB	Auto Restart, Locked Rotor Protection	5 V
