General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil Socketable
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2823625 | 28236 Series |
|---|---|---|
| Approval Agency | - | EAC |
| Coil Current | 21 mA | 5 - 21 mA |
| Coil Resistance | - | 24 - 1142 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 24 - 120 VAC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A), SPST-NC (1 Form B) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | - | Lighted Indicator |
| Mounting Type | Socketable | Socketable |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 11 ms | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Plug In |

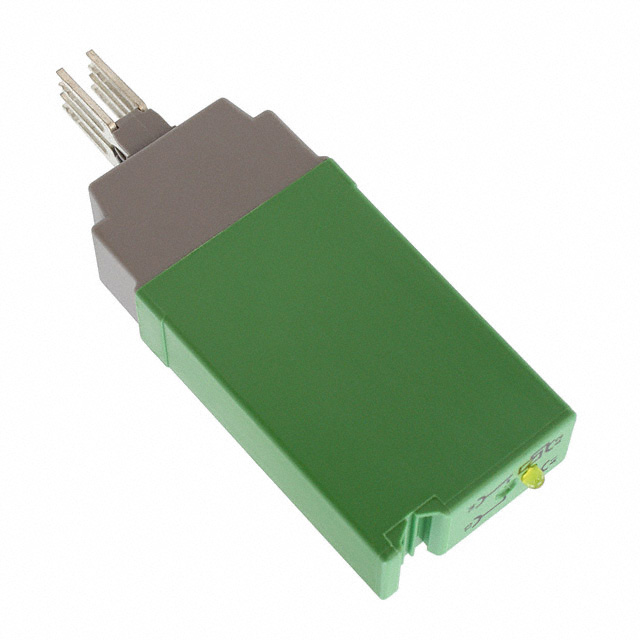

RELAY GEN PURPOSE SPST 6A 24V
| Part | Mounting Type | Switching Voltage | Relay Type | Operate Time | Contact Form | Termination Style | Contact Material | Coil Current | Coil Voltage | Release Time | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Approval Agency | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2823625 | Socketable | 250 VAC, 250 VDC | General Purpose | 7 ms | SPST-NO (1 Form A) | Plug In | Silver Nickel (AgNi) | 21 mA | 24 VAC | 11 ms | 6 A | 50 °C | -20 C | Non Latching | |||
Phoenix Contact 2823654 | Socketable | 250 VAC, 250 VDC | General Purpose | 7 ms | SPST-NO (1 Form A) | Plug In | Silver Nickel (AgNi) | 5 mA | 120 VAC, 120 VDC | 11 ms | 6 A | 50 °C | -20 C | Non Latching | EAC | 24 kOhms | |
Phoenix Contact 2823670 | Socketable | 250 VAC, 250 VDC | General Purpose | 7 ms | SPST-NC (1 Form B) | Plug In | Silver Nickel (AgNi) | 21 mA | 24 VAC | 11 ms | 6 A | 50 °C | -20 C | Non Latching | EAC | 1142 kOhms | Lighted Indicator |
