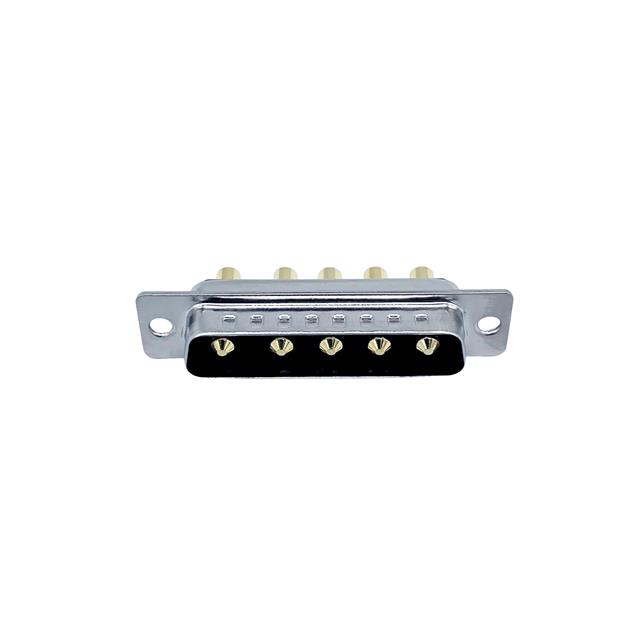

681M5W5103L141

Active

MH Connectors

CONN D-SUB PLUG 5P PNL MNT SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB PLUG 5P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	681M5W5103L141

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Connector Style	Flange Feature	Color	Contact Finish Thickness	Shell Material, Finish	Connector Type	Contact Finish	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Number of Positions [custom]	Features	Number of Rows	Termination	Voltage Rating
MH Connectors 681M5W5103L041	40 A	Combo D-Sub	4-40 Board Side	Black	Flash	Nickel Plated Steel	Male Pins Plug	Gold	Copper Alloy	UL94 V-0	-55 °C	125 °C	Panel Mount Through Hole	Power	5W5	3	Polybutylene Terephthalate (PBT)	5	Board Lock Grounding Indents	1	Solder
MH Connectors 681M5W5103L051	40 A	Combo D-Sub	4-40 Board Side	Black	Flash	Nickel Plated Steel	Male Pins Plug	Gold	Copper Alloy	UL94 V-0	-55 °C	125 °C	Panel Mount Through Hole	Power	5W5	3	Polybutylene Terephthalate (PBT)	5	Board Lock Grounding Indents	1	Solder
MH Connectors 681M5W5103L141	40 A	Combo D-Sub	4-40 Board Side	Black	Flash	Nickel Plated Steel	Male Pins Plug	Gold	Copper Alloy	UL94 V-0	-55 °C	125 °C	Panel Mount Through Hole	Power	5W5	3	Polybutylene Terephthalate (PBT)	5	Board Lock Grounding Indents	1	Solder	250 VDC
MH Connectors 681M5W5203L141	40 A	Combo D-Sub	4-40 Board Side	Black	Flash	Nickel Plated Steel	Receptacle Female Sockets	Gold	Copper Alloy	UL94 V-0	-55 °C	125 °C	Panel Mount Through Hole	Power	5W5	3	Polybutylene Terephthalate (PBT)	5		1	Solder	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
