MINT1065A1875C01

Active

SL POWER / Advanced Energy

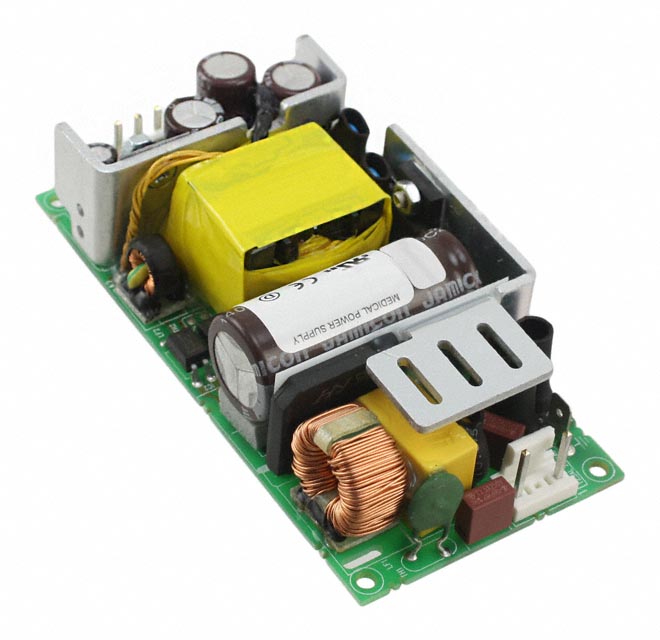

AC/DC CONVERTER 18V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MINT1065A1875C01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 18V 65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MINT1065A1875C01

Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus
Current - Output 1	2.66 A
Efficiency	90 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	26 mm
Size / Dimension [z]	1.02 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	18 V

MINT1065 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Mounting Type	Applications	Efficiency	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Type	Number of Outputs	Current - Output 1	Features	Voltage - Output 1
SL POWER / Advanced Energy MINT1065D1575K01	90 VAC	264 VAC	70 °C	Chassis Mount	Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	29.7 mm	2 in	1.17 in	4000 V	Open Frame	1	4.33 A	Universal Input	15 V
SL POWER / Advanced Energy MINT1065A2475C01	90 VAC	264 VAC	70 °C	Chassis Mount	ITE (Commercial) Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	26 mm	2 in	1.02 in	4000 V	Open Frame	1	2 A	Universal Input	24 V
SL POWER / Advanced Energy MINT1065D1875K01	90 VAC	264 VAC	70 °C	Chassis Mount	Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	29.7 mm	2 in	1.17 in	4000 V	Open Frame	1	3.5 A	Universal Input	18 V
SL POWER / Advanced Energy MINT1065D1275K01	90 VAC	264 VAC	70 °C	Chassis Mount	Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	29.7 mm	2 in	1.17 in	4000 V	Open Frame	1	5.25 A	Universal Input	12 V
SL POWER / Advanced Energy MINT1065A1875C01	90 VAC	264 VAC	70 °C	Chassis Mount	ITE (Commercial) Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	26 mm	2 in	1.02 in	4000 V	Open Frame	1	2.66 A	Universal Input	18 V
SL POWER / Advanced Energy MINT1065D2475K01	90 VAC	264 VAC	70 °C	Chassis Mount	Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	29.7 mm	2 in	1.17 in	4000 V	Open Frame	1	2.7 A	Universal Input	24 V
SL POWER / Advanced Energy MINT1065A4875C01	90 VAC	264 VAC	70 °C	Chassis Mount	ITE (Commercial) Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	26 mm	2 in	1.02 in	4000 V	Open Frame	1	1 A	Universal Input	48 V
SL POWER / Advanced Energy MINT1065D4875K01	90 VAC	264 VAC	70 °C	Chassis Mount	Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	29.7 mm	2 in	1.17 in	4000 V	Open Frame	1	1.35 A	Universal Input	48 V
SL POWER / Advanced Energy MINT1065A1575C01	90 VAC	264 VAC	70 °C	Chassis Mount	ITE (Commercial) Medical	90 %	CE cURus	4 in	50.8 mm	101.6 mm	26 mm	2 in	1.02 in	4000 V	Open Frame	1	3.2 A	Universal Input	15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.36

Description

General part information

MINT1065 Series

Open Frame AC DC Converters 1 Output 18V 90 ~ 264 VAC Input
