10150-52E2PC

Active

JE150345054 10150-52E2PC=50/MDR/RC/PLUG/RA/GLK/30MIN

Search across all available documentation for this part.

Active

JE150345054 10150-52E2PC=50/MDR/RC/PLUG/RA/GLK/30MIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10150-52E2PC	10150 Series

	-	-
Connector Style	Center Strip Contacts	Center Strip Contacts
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.203 - 0.76 µm
Contact Finish Thickness	30 Áin	8 - 30 µin
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40), Housing/Shell
Flange Feature	-	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount, Board Edge, Straddle Mount
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	IDC, Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN PLUG 50POS STR SLDR CUP

Part	Connector Type	Features	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Contact Finish	Number of Positions	Termination	Flange Feature	Flange Feature
3M 10150-3000VE	Plug	Shielded	Center Strip Contacts	0.51 µm	20 µin	Free Hanging (In-Line)	2	Gold	50
3M 10150-6000EC	Plug	Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Gold	50	IDC
3M 10150-52E2PC	Plug	Board Lock, Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole	2	Gold	50	Solder	Housing/Shell (4-40)
3M 10150-7242VC	Plug	Board Lock, Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole	2	Gold	50	Solder	Housing/Shell (4-40)
3M 10150-90AAPC	Plug	Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Board Edge, Straddle Mount	2	Gold	50	Solder
3M 10150-5212PC	Plug	Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole	2	Gold	50	Solder	Housing/Shell	2.6 M
3M 10150-5212PC
3M 10150-5242VC	Plug	Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole	2	Gold	50	Solder	Housing/Shell (4-40)
3M 10150-3000VC	Plug	Shielded	Center Strip Contacts	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	Gold	50
3M 10150-6000EC

General part information

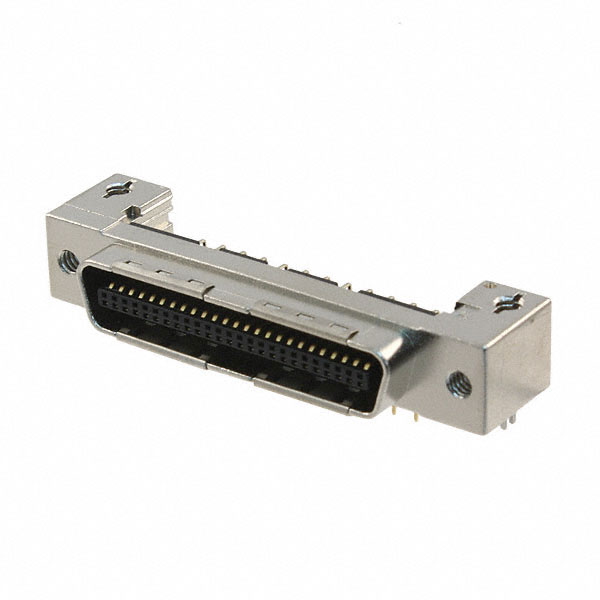

50 Position Plug Connector Panel Mount, Through Hole, Right Angle Solder
