10150-6000EC
Active3M

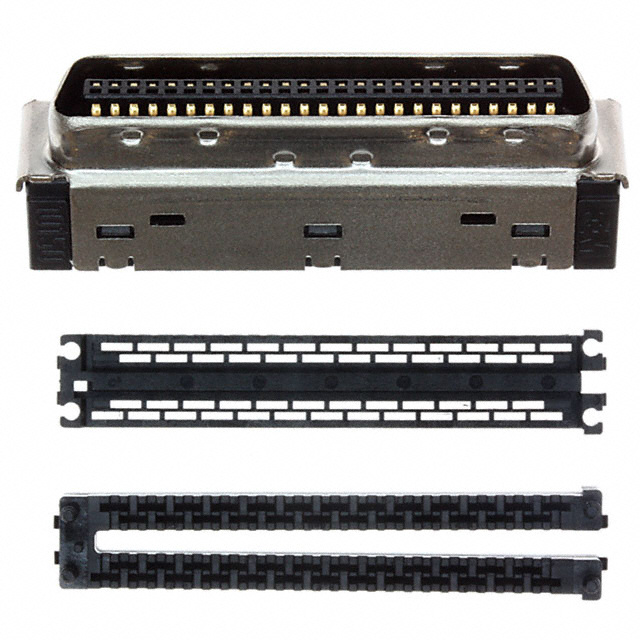

D SUB CONNECTOR, 50 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
10150-6000EC
Active3M
D SUB CONNECTOR, 50 CONTACTS, PLUG, IDC / IDT, MDR 101 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10150-6000EC | 10150 Series |
|---|---|---|
| - | - | |
| Connector Style | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.203 - 0.76 µm |
| Contact Finish Thickness | 30 Áin | 8 - 30 µin |
| Features | Shielded | Shielded, Board Lock |
| Flange Feature | - | Housing/Shell (4-40), Housing/Shell |
| Flange Feature | - | 2.6 M |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount, Board Edge, Straddle Mount |
| Number of Positions | 50 | 50 |
| Number of Rows | 2 | 2 |
| Termination | IDC | IDC, Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10150 Series
CONN PLUG 50POS STR SLDR CUP
| Part | Connector Type | Features | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Contact Finish | Number of Positions | Termination | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plug | Shielded | Center Strip Contacts | 0.51 µm | 20 µin | Free Hanging (In-Line) | 2 | Gold | 50 | ||||
Plug | Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | 2 | Gold | 50 | IDC | |||
Plug | Board Lock, Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Panel Mount, Right Angle, Through Hole | 2 | Gold | 50 | Solder | Housing/Shell (4-40) | ||
Plug | Board Lock, Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Panel Mount, Right Angle, Through Hole | 2 | Gold | 50 | Solder | Housing/Shell (4-40) | ||
Plug | Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Board Edge, Straddle Mount | 2 | Gold | 50 | Solder | |||
Plug | Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Panel Mount, Right Angle, Through Hole | 2 | Gold | 50 | Solder | Housing/Shell | 2.6 M | |
Plug | Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Panel Mount, Right Angle, Through Hole | 2 | Gold | 50 | Solder | Housing/Shell (4-40) | ||
Plug | Shielded | Center Strip Contacts | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | 2 | Gold | 50 | ||||
Description
General part information
10150 Series
The 10150-6000EC is a 50-way 0.05-inch IDC Wire-mount Plug with gold-plated beryllium copper contacts. The 101 series mini D ribbon (MDR) connector comes with a glass reinforced polyester insulator and black cover. It accommodates 28AWG stranded and 30AWG solid wire.
