DS21348G+
ActiveAnalog Devices Inc./Maxim Integrated

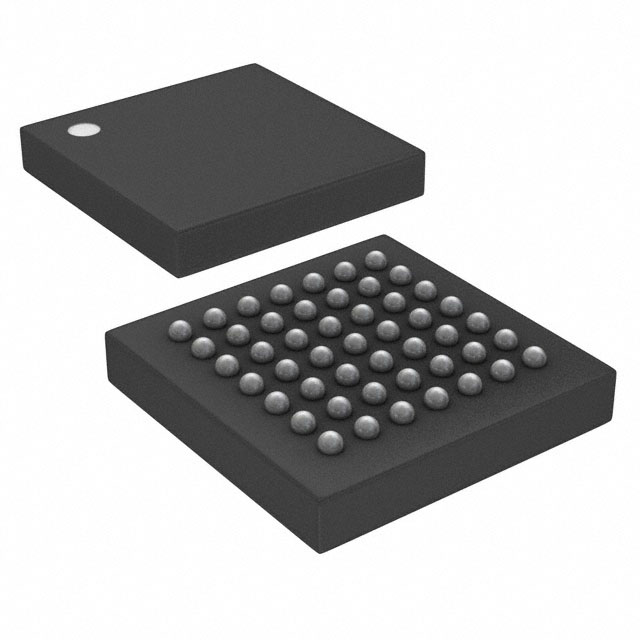

IC TELECOM INTERFACE 49CSBGA
Deep-Dive with AI
Search across all available documentation for this part.
DS21348G+
ActiveAnalog Devices Inc./Maxim Integrated
IC TELECOM INTERFACE 49CSBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS21348G+ | DS21348 Series |
|---|---|---|
| Current - Supply | - | 66 mA |
| Function | - | Line Interface Unit (LIU) |
| Interface | Serial | Serial |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 49-LFBGA, CSPBGA | 49-LFBGA, CSPBGA, 44-TQFP |
| Supplier Device Package | 49-CSBGA (7x7) | 49-CSBGA (7x7), 44-TQFP (10x10) |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.21 | |
| 10 | $ 13.50 | |||
DS21348 Series
IC TELECOM INTERFACE 49CSBGA
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Number of Circuits | Current - Supply | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS21348G+ | 49-LFBGA, CSPBGA | 70 °C | 0 °C | Surface Mount | 49-CSBGA (7x7) | 3.465 V | 3.135 V | Serial | 1 | ||
Analog Devices Inc./Maxim Integrated DS21348GN | 49-LFBGA, CSPBGA | 85 °C | -40 °C | Surface Mount | 49-CSBGA (7x7) | 3.465 V | 3.135 V | Serial | 1 | ||
Analog Devices Inc./Maxim Integrated DS21348TN | 44-TQFP | 85 °C | -40 °C | Surface Mount | 44-TQFP (10x10) | 3.465 V | 3.135 V | 1 | 66 mA | Line Interface Unit (LIU) | |
Analog Devices Inc./Maxim Integrated DS21348T | 44-TQFP | 70 °C | 0 °C | Surface Mount | 44-TQFP (10x10) | 3.465 V | 3.135 V | 1 | 66 mA | Line Interface Unit (LIU) | |
Analog Devices Inc./Maxim Integrated DS21348TN+ | 44-TQFP | 85 °C | -40 °C | Surface Mount | 44-TQFP (10x10) | 3.465 V | 3.135 V | 1 | 66 mA | Line Interface Unit (LIU) | |
Analog Devices Inc./Maxim Integrated DS21348GN+ | 49-LFBGA, CSPBGA | 85 °C | -40 °C | Surface Mount | 49-CSBGA (7x7) | 3.465 V | 3.135 V | Serial | 1 | ||
Analog Devices Inc./Maxim Integrated DS21348T+ | 44-TQFP | 70 °C | 0 °C | Surface Mount | 44-TQFP (10x10) | 3.465 V | 3.135 V | 1 | 66 mA | Line Interface Unit (LIU) | |
Analog Devices Inc./Maxim Integrated DS21348G | 49-LFBGA, CSPBGA | 85 °C | -40 °C | Surface Mount | 49-CSBGA (7x7) | 3.465 V | 3.135 V | Serial | 1 |
Description
General part information
DS21348 Series
Telecom IC 49-CSBGA (7x7)
