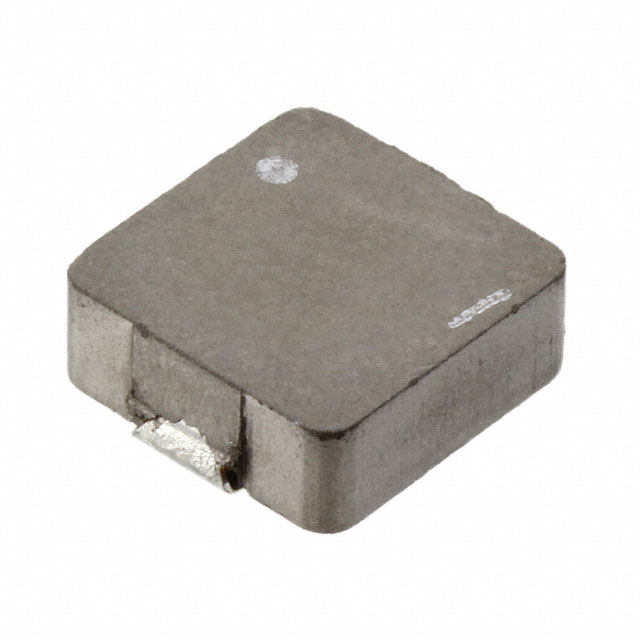

MPC1040LR56C - MPC1040LRxxC

MPC1040LR56C

Active
KEMET

SURFACE MOUNT POWER INDUCTOR, MPC SERIES, 560 NH, 20%, SHIELDED, 1300 OHM, 23 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
MPC1040LR56C - MPC1040LRxxC

MPC1040LR56C

Active
KEMET

SURFACE MOUNT POWER INDUCTOR, MPC SERIES, 560 NH, 20%, SHIELDED, 1300 OHM, 23 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPC1040LR56C
Current Rating (Amps)23 A
DC Resistance (DCR) [Max]1.3 mOhm
Height - Seated (Max) [Max]0.157 in
Height - Seated (Max) [Max]4 mm
Inductance560 nH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]120 °C
Operating Temperature [Min]-20 C
Package / Case2-SMD, J-Lead
ShieldingShielded
Size / Dimension [x]11.5 mm
Size / Dimension [x]0.453 "
Size / Dimension [y]0.394 in
Size / Dimension [y]10 mm
Tolerance20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.24
10$ 1.90
25$ 1.75
50$ 1.57
100$ 1.30
250$ 1.27
Digi-Reel® 1$ 2.24
10$ 1.90
25$ 1.75
50$ 1.57
100$ 1.30
250$ 1.27
Tape & Reel (TR) 500$ 0.92
NewarkEach (Supplied on Cut Tape) 1$ 2.24
10$ 1.46
25$ 1.37
50$ 1.30
100$ 1.22
250$ 1.18
500$ 1.12

Description

General part information

MPC1040 Series

560 nH Shielded Inductor 23 A 1.3mOhm Max 2-SMD, J-Lead
