LPHT-04-24-L-RT1-GP - LPHT-04-24-L-RT1-GP

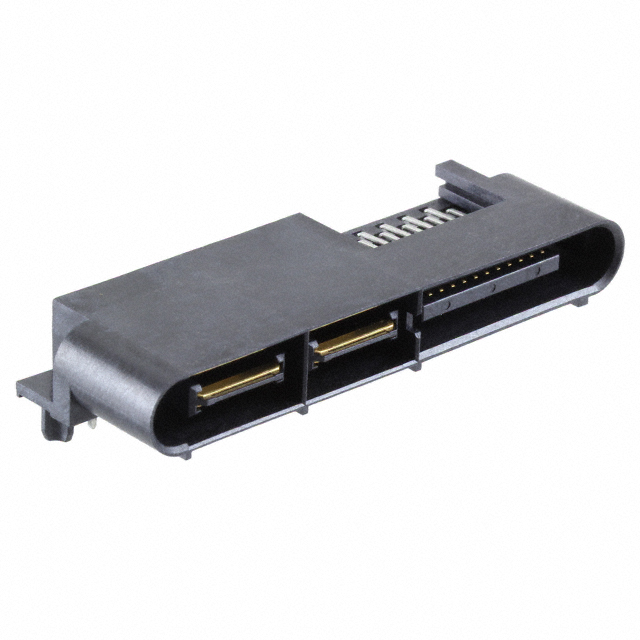

LPHT-04-24-L-RT1-GP

Active
Samtec Inc.

CONNECTOR, RECTNGLR, PLUG, 28POS, PCB ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLPHS Series Other Related Documents 03.050" EXTreme LPHPower™ 30 Amp Signal/Power Combo Terminal Strip+1
LPHT-04-24-L-RT1-GP - LPHT-04-24-L-RT1-GP

LPHT-04-24-L-RT1-GP

Active
Samtec Inc.

CONNECTOR, RECTNGLR, PLUG, 28POS, PCB ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsLPHS Series Other Related Documents 03.050" EXTreme LPHPower™ 30 Amp Signal/Power Combo Terminal Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLPHT-04-24-L-RT1-GP
ColorBlack
Connector StyleLPHPower
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact Layout, Typical [custom]12
Contact Layout, Typical [custom]2
FeaturesMating Guide, Board Guide
Mounting TypeThrough Hole, Right Angle
Number of Positions28
Number of Positions LoadedAll
Number of Rows2
TerminationSolder
Voltage Rating250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 11.29
10$ 10.44
25$ 9.87
50$ 9.51
100$ 8.51
NewarkEach 1$ 11.04
10$ 10.21
25$ 9.49
50$ 8.89
100$ 8.39
250$ 7.89

Description

General part information

LPHT-04 Series

28 Connector Plug, Center Strip Contacts Through Hole, Right Angle Black LPHPower
