180-002-170L001
ActiveMH Connectors

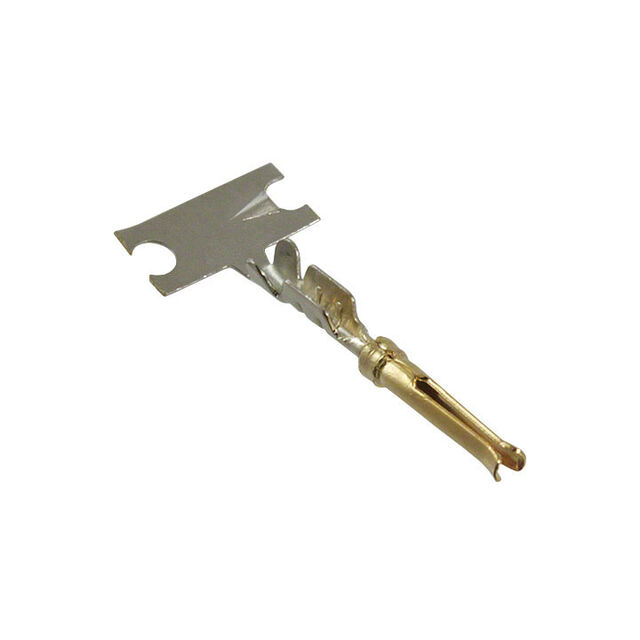

D SUB CONTACT, NORCOMP 180 SERIES D SUB HOUSING CONNECTORS, SOCKET, PHOSPHOR BRONZE
Deep-Dive with AI
Search across all available documentation for this part.
180-002-170L001
ActiveMH Connectors
D SUB CONTACT, NORCOMP 180 SERIES D SUB HOUSING CONNECTORS, SOCKET, PHOSPHOR BRONZE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-002-170L001 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Insulation Support, High Density (HD) |
| Termination Finish | Nickel |
| Type | Signal |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.06 | ||
| 20000 | $ 0.06 | |||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.13 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| 10000 | $ 0.06 | |||
| 25000 | $ 0.05 | |||
Description
General part information
180-002 Series
D-Sub Contact Female Socket Gold 24-26 AWG Crimp Stamped
