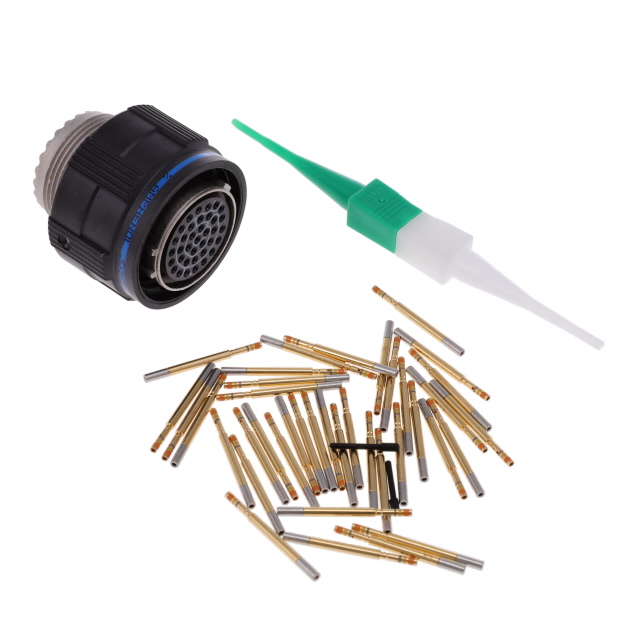

D38999/26MD35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 37POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26MD35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 37POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26MD35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/26MD Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Material	Number of Positions	Connector Type	Features	Contact Material	Qualification	Contact Finish - Mating	Ingress Protection	Color	Grade	Shell Size, MIL	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Termination	Mounting Type	Primary Material	Applications	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Housing Color	Contact Shape	Type	Contact Size	Contact Type	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Aerospace Operations D38999/26MD35JE	2.54 çm	100 çin	E	Composite	37	Female Sockets Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Military	Electroless Nickel	15	35
Amphenol Aerospace Operations D38999/26MD97AA			A	Composite	12	Plug Housing			MIL-DTL-38999 Series III		Environment Resistant		Military	D	-65 ░C	200 °C	Shielded		Free Hanging (In-Line)			Electroless Nickel	15	97	Contacts Not Included	Silver	Circular	For Male Pins	4 8 16 20	Crimp
Amphenol Aerospace Operations D38999/26MD5SN	1.27 µm	50 µin	N	Composite		Female Sockets Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Marine Military	Electroless Nickel									15-5
Amphenol Aerospace Operations D38999/26MD19PN	1.27 µm	50 µin	N	Composite	19	Male Pins Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Marine Military	Electroless Nickel										19	15
Amphenol Aerospace Operations D38999/26MD19SN	1.27 µm	50 µin	N	Composite	19	Female Sockets Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Marine Military	Electroless Nickel										19	15
Amphenol Aerospace Operations D38999/26MD35SN	1.27 µm	50 µin	N	Composite	37	Female Sockets Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Marine Military	Electroless Nickel	15	35
Amphenol Aerospace Operations D38999/26MD35HE	2.54 çm	100 çin	E	Composite	37	Male Pins Plug	Coupling Nut	Copper Alloy	MIL-DTL-38999 Series III	Gold	Environment Resistant	Silver	Military	D	-65 ░C	200 °C	Shielded	Crimp	Free Hanging (In-Line)	Composite	Aerospace Aviation Military	Electroless Nickel	15	35
Amphenol Aerospace Operations D38999/26MD97AC			C	Composite	12	Plug Housing	Coupling Nut Self Locking		MIL-DTL-38999 Series III		Environment Resistant		Military	D	-65 ░C	200 °C	Shielded		Free Hanging (In-Line)			Electroless Nickel	15	97	Contacts Not Included	Silver	Circular	For Male Pins	4 8 16 20	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.23
		10	$ 121.20
		25	$ 110.45
		50	$ 103.21
		100	$ 96.66

Description

General part information

D38999/26MD Series

37 Position Circular Connector Plug, Female Sockets Crimp
