9WV0848P1H0011

Active

Sanyo Denki America Inc.

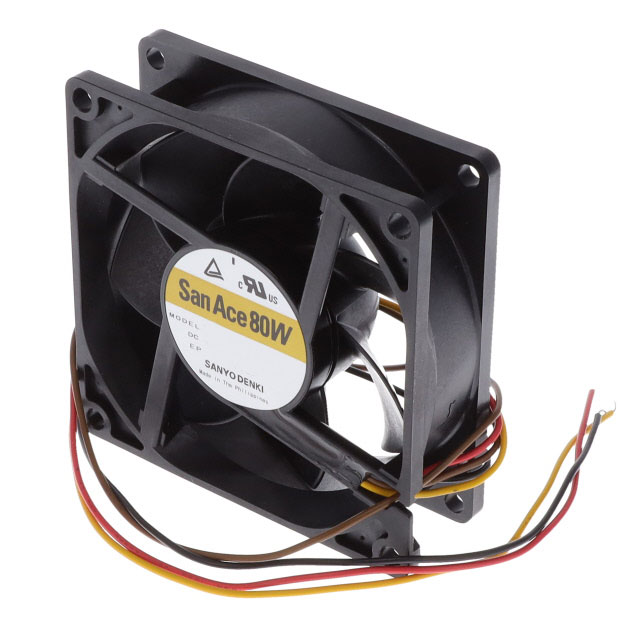

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9WV0848P1H0011	9WV0848 Series

Air Flow	131 CFM	131 CFM
Air Flow	3.67 mł/min	3.67 mł/min
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	750 mA	750 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), PWM Control	Speed Sensor (Tach), PWM Control
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	Varies Based on Temperature	Varies Based on Temperature
Lifetime @ Temp.	-	40000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	63 dB	63 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	36 W	36 W
RPM	9700 RPM	9700 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	1.77 in H2O	1.77 in H2O
Static Pressure	440.9 Pa	440.9 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	52.8 VDC	52.8 VDC
Voltage Range [Min]	40.8 VDC	40.8 VDC
Weight	239.95 g	234.96 - 239.95 g
Weight	0.529 lb	0.518 - 0.529 lb
Width [y]	38 mm	38 mm

FAN AXIAL 80X38MM 48VDC WIRE

Part	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Voltage - Rated [custom]	Material - Frame	Material - Blade	Fan Type	RPM	Weight	Weight	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Features	Bearing Type	Termination	Lifetime @ Temp.
Sanyo Denki America Inc. 9WV0848P1H0011	1.77 in H2O	440.9 Pa	63 dB	131 CFM	3.67 mł/min	48 VDC	Plastic	Plastic	Tubeaxial	9700 RPM	239.95 g	0.529 lb	CSA, TUV, UL	36 W	-20 °C	70 °C	-20 C	70 °C	750 mA	52.8 VDC	40.8 VDC	Varies Based on Temperature	IP68 - Dust Tight, Waterproof	80 mm	80 mm	38 mm	PWM Control, Speed Sensor (Tach)	Ball	4 Wire Leads
Sanyo Denki America Inc. 9WV0848P1H001	1.77 in H2O	440.9 Pa	63 dB	131 CFM	3.67 mł/min	48 VDC	Plastic	Plastic	Tubeaxial	9700 RPM	234.96 g	0.518 lb	CSA, TUV, UL	36 W	-20 °C	70 °C	-20 C	70 °C	750 mA	52.8 VDC	40.8 VDC		IP68 - Dust Tight, Waterproof	80 mm	80 mm	38 mm	PWM Control, Speed Sensor (Tach)	Ball	4 Wire Leads	40000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	27	$ 69.56

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 131.0 CFM (3.67m³/min) 4 Wire Leads
